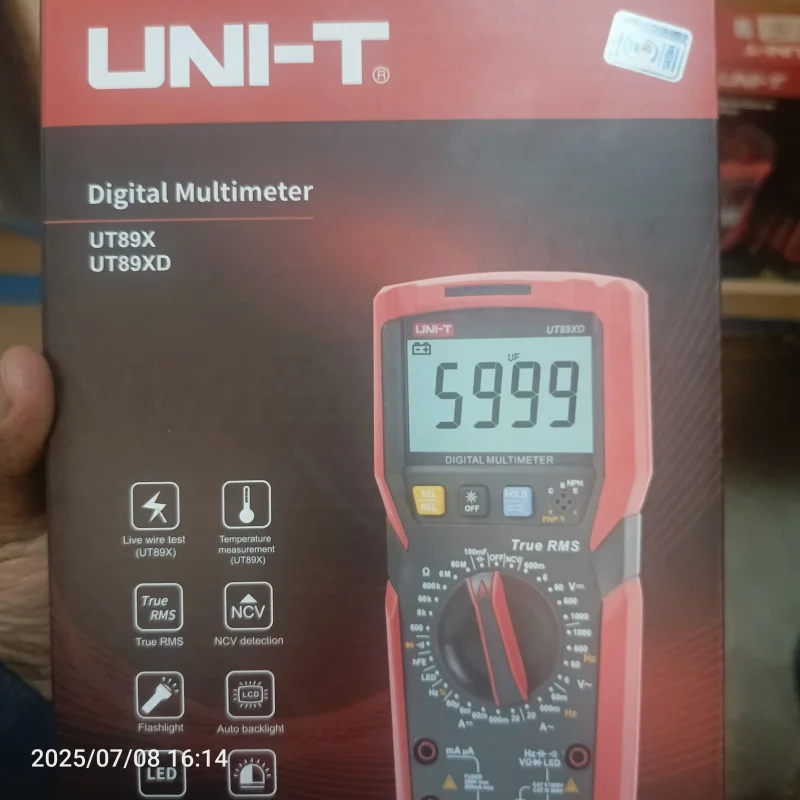

UNI-T UT89XD Digital Multimeter Specifications
General Features:
-
Display Count: 6,000
-
True RMS: Yes (AC voltage and current)
-
Auto/Manual Range: Yes
-
Backlight: Yes (with screen hold)
-
Flashlight: Built-in LED torch
-
Data Hold: Yes
-
Relative Mode: Yes
-
MAX/MIN Recording: Yes
-
Low Battery Indicator: Yes
-
NCV (Non-Contact Voltage Detection): Yes (with buzzer & LED)
-
Live Wire Detection (L test): Yes
-
Buzzer: Audible continuity alert
Measurement Ranges:
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 600mV 1000V | (0.5% + 2 digits) |
| AC Voltage (True RMS) | 600mV 750V | (0.8% + 3 digits) |
| DC Current | 600A 10A | (1.0% + 3 digits) |
| AC Current (True RMS) | 600A 10A | (1.5% + 3 digits) |
| Resistance | 600 60M | (0.8% + 2 digits) |
| Capacitance | 1nF 100mF | (4.0% + 5 digits) |
| Frequency | 10Hz 10MHz | (0.1% + 3 digits) |
| Temperature (K-Type) | -40C to 1000C | (1.0% + 3C) |
| Diode Test | Yes | 2.0V forward bias limit |
| Continuity Test | Yes (Buzzer <50) |
Safety & Protection:
-
Fuse Protection: Yes Fast-blow fuse 10A & mA ranges
-
Input Protection: Yes (PTC & fuse protected)
-
Safety Rating: CAT III 1000V, CAT IV 600V
-
Overload Protection: Present on all ranges
Additional Features:
-
Work Light: Built-in LED flashlight for dark areas
-
Display Type: Large LCD with backlight
-
NCV & Live Line Detection: With buzzer and LED alert
-
Battery Test: Yes (1.5V, 9V, 12V support)
-
Auto Power Off: Yes (with disable option)
Included Accessories:
-
UT89XD Digital Multimeter
-
Test Leads
-
K-Type Thermocouple
-
Instruction Manual
-
2 AA Batteries
-
Protective Case (varies by supplier)
Physical Characteristics:
-
Dimensions: 190mm 89mm 53mm
-
Weight: Approx. 390g (with batteries)
-
Power Supply: 2 1.5V AA batteries
