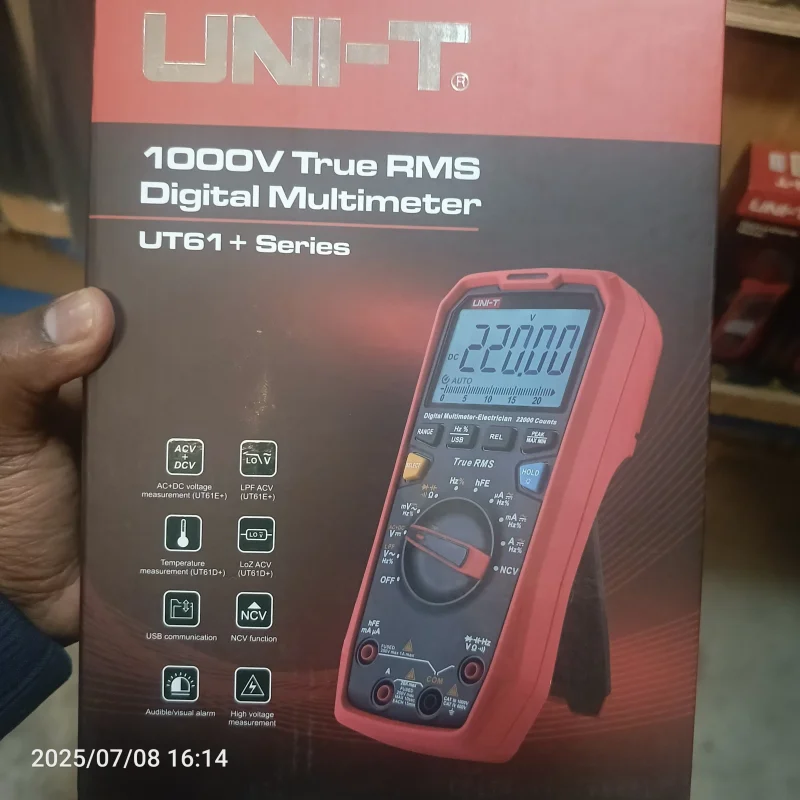

UNI-T UT61D True RMS Digital Multimeter

Description

UNI-T UT61D+ True RMS Digital Multimeter Specifications

General Features:

• Display Count: 6,000 (Large LCD)

• Auto/Manual Ranging: Yes

• True RMS Measurement: Yes (AC Voltage/Current)

• Backlight: Yes (White LED)

• Data Hold: Yes

• Relative Mode: Yes

• Max/Min Mode: Yes

• Auto Power Off: Yes (approx. 15 minutes)

• Low Battery Indicator: Yes

• Input Protection: Yes

• Bar Graph Display: Yes (Analog-style)

• Sampling Rate: Approx. 3 times/sec

Measurement Ranges:

Function	Range	Accuracy
DC Voltage	600mV 1000V	(0.5% + 2 digits)
AC Voltage (TRMS)	600mV 750V	(0.8% + 10 digits)
DC Current	600A 10A	(1.0% + 3 digits)
AC Current (TRMS)	600A 10A	(1.5% + 3 digits)
Resistance	600 60M	(0.8% + 2 digits)
Capacitance	40nF 100mF	(3.5% + 10 digits)
Frequency	10Hz 10MHz	(0.1% + 3 digits)
Temperature (K-Type)	-40C to 1000C	(1.0% + 3C)
Duty Cycle	0.1% 99.9%	(1.2% + 2 digits)

Safety & Build:

• Input Protection: 1000V Fuse & Internal PTC

• Safety Rating: CAT III 1000V, CAT IV 600V

• Display Type: LCD with 61-segment bar graph

• Build Quality: Durable ABS casing with integrated holster

Additional Features:

• NCV (Non-Contact Voltage Detection): No

• RS232/USB Interface: USB (with software for logging)

• PC Connectivity: Yes (via USB interface)

• Continuity Test: Audible buzzer <50

• Diode Test: Yes

Package Includes:

• UT61D+ Multimeter

• Test Leads

• USB Data Cable

• CD Software

• K-Type Thermocouple

• User Manual

• Protective Carrying Case

• 9V Battery

Physical Specs:

• Weight: Approx. 390g (with battery)

• Dimensions: 182mm 90mm 47.5mm

• Battery Type: 1 x 9V (6F22)
