Description

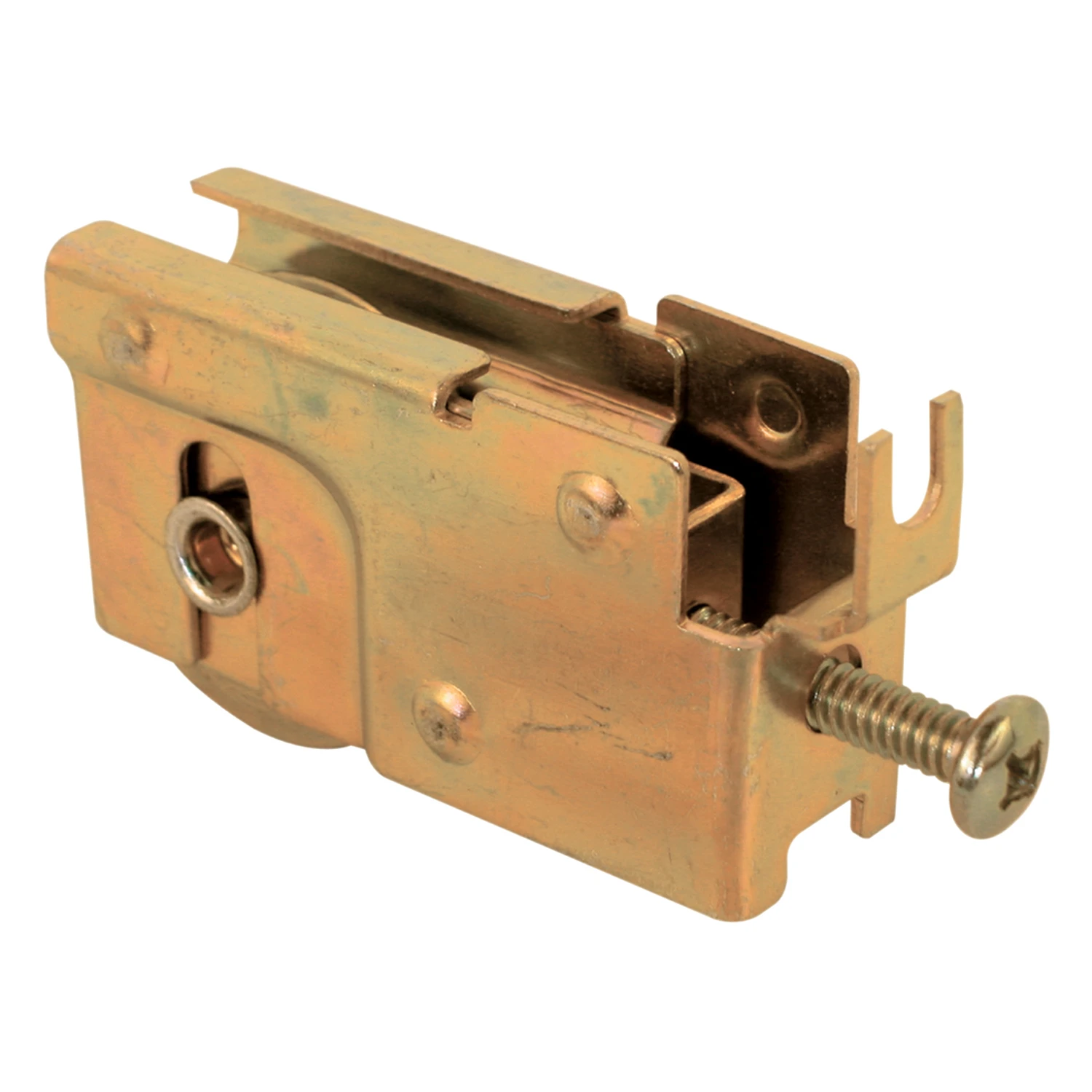

This is a C-tab patio door roller assembly with a 1-1/4 in. diameter concave, or grooved, steel ball bearing roller. As the C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 23/32 in. wide and 1-3/16 in. tall with a dimple width of 7/8 in., and is most often used by Solar Industries and a variety of other patio door manufacturers.
- Used by Solar Industries and several other metal framed patio door manufacturers
- 1-1/4 in. diameter roller
- C-tab housing with rear adjust
- Steel housing and ball bearing roller
| SKU | 629543 | UPC | 049793015266 |
| Weight | 0.25 lbs | Package Width | 3.75 in |
| Package Length | 0.95 in | Package Height | 5.4 in |
| Model Number | D 1526 | Brand | Prime Line |
| Manufacturer Name | PRIME LINE PRODUCTS |
