Description

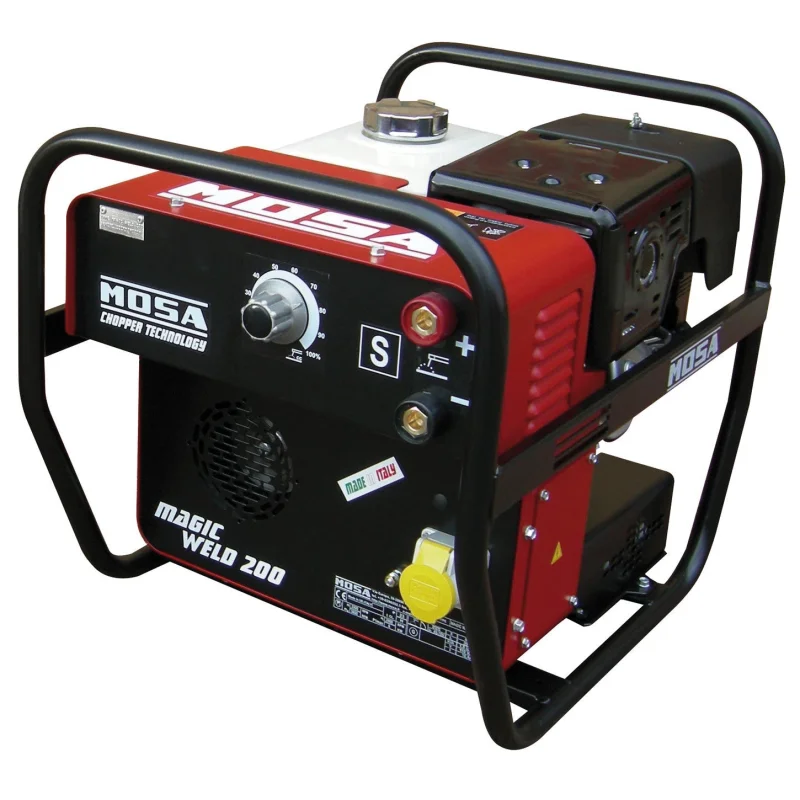

The Mosa Magic Weld 200 is a portable and compact petrol welder generator with a 200A output that is capable of welding 4mm diameter electrodes.
Engine:
Model: Honda GX 270
Fuel: Petrol
Starter: Recoil
Output: 6.3kW (8.5 HP)
Cylinders/Displacement: 1/270cm3
Fuel consumption (welding 60%): 1.5l/h
Speed: 3600 rpm
Cooled: Air
D.C. Welding (constant current):
Current range, continuous: 20 – 200A
Duty cycle: 200A – 60%
Open circuit voltage: 70V
Arc welding source in D.C. welding
Welds any electrode type, including cellulosic
Welds up to 4.0mm electrodes
High frequency control of welding current and voltage
A.C. Generation – 50Hz:
Permanent magnet alternator
Self exciting, brushless
Insulation class: H
Single-phase power: 2.1kVA (2.1kW) /110V / 18.2A
Specifications:
Auto Idle
Protection: IP23
Dry weight: 61kg
Tank capacity: 5.3 litres
Running time (welding 60%): 3.5 hours
Dimensions (mm): 630 x 490 x 540
Engine shut down for low oil level (oil alert)
Single-Phase, 50Hz aux current, inverter generated
Acoustic power LwA (pressure LpA): 99 dB(A) (74 dB(A) @ 7 m)
2 year warranty (subject to product registration)
