Description

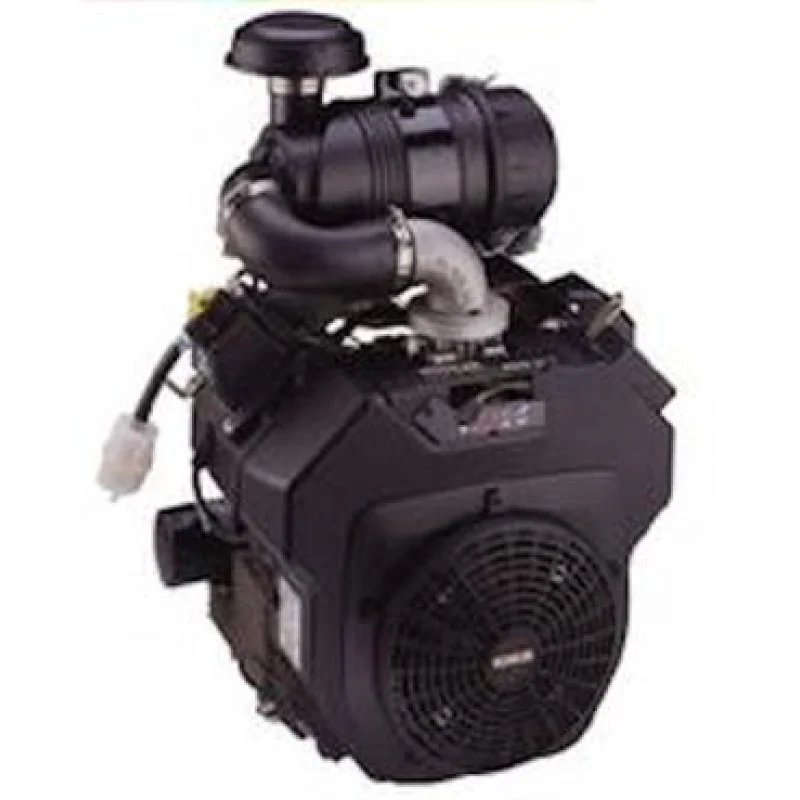

25 hp Command V-twin
1-1/8″ x 3-3/8″keyed shaftGrasshopperreplacement engine.OHV, cast iron cylinder liners, full pressure lube w/ oil filter, fuel pump,12 volt electric start w/ alternator,less gas tank,includes new canistermuffler.Model CH742-3112.108 lbs
| This v-twin cylinder, air-cooled, 25 HP horizontal-shaft engine is built to last. OHV, cast iron cylinder liners, and aluminum block construction make the 4-cycle, gasoline-powered Command Pro ready for the long haul. |
|
Easy Dependable Starts
- SMART-CHOKE carburetor
- Electronic ignition system
- Solenoid shift starter
Reliability & Long-life Design
- Oil cooler
- Hardened crankshaft journals
- PTO thrust bearing
- High-efficiency fan and screen
- Heavy-duty air cleaner
- Cast iron cylinder liners
- Hydraulic valve lifters
- Full-pressure lubrication
- Spin-on, full-flow oil filter
|
Peak Power Performance
- Accelerator pump carburetor
- High-performance spark plugs
- 20 amp charging, regulated
- Larger in-line fuel filter
- Overhead valve (OHV) design
Quiet, Smooth Operation
- Engineered material blower housing
- Mechanical fuel pump
- CARB & EPA emission-certified
User-friendly Maintenance
- Extended maintenance intervals
- Yellow oil fill cap & dipstick handle
- Dual oil drains
- Easy-access oil fill/dipstick
- Two-year limited warranty
|
| Specifications |
Shaft: Horizontal
Cylinders: V-Twin
Cooling: Air
Engine Type: 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block |
Model
|
Command PRO CH742
|
| J1940 Power hp(kW)1 |
25 (18.6) |
| Displacement cu in (cc) |
45.6 (747) |
| Bore in (mm) |
3.3 (83) |
| Stroke in (mm) |
2.7 (69) |
| Peak Torque lbs. ft (Nm) |
41.2 (55.9) |
| Compression Ratio |
9.1:1 |
| Dry Weight lbs (kg) |
105 (48) |
| Oil Capacity U.S. quarts (L) |
2 (1.9) |
| Lubrication |
Full pressure w/full-flow filter |
| Dimensions L x W x H in |
14.6 x 17.7 x 24.5 |
| Backpressure Limit2 |
50 |
| J1995 Power hp (kW)3 |
24.7 (18.4) |
| J1995 Rated Speed (RPM) |
3600 |
|
| *Length is grass screen to PTO mounting face. Width is spark plug to spark plug. Height is top of air cleaner to mounting feet. |
