Description

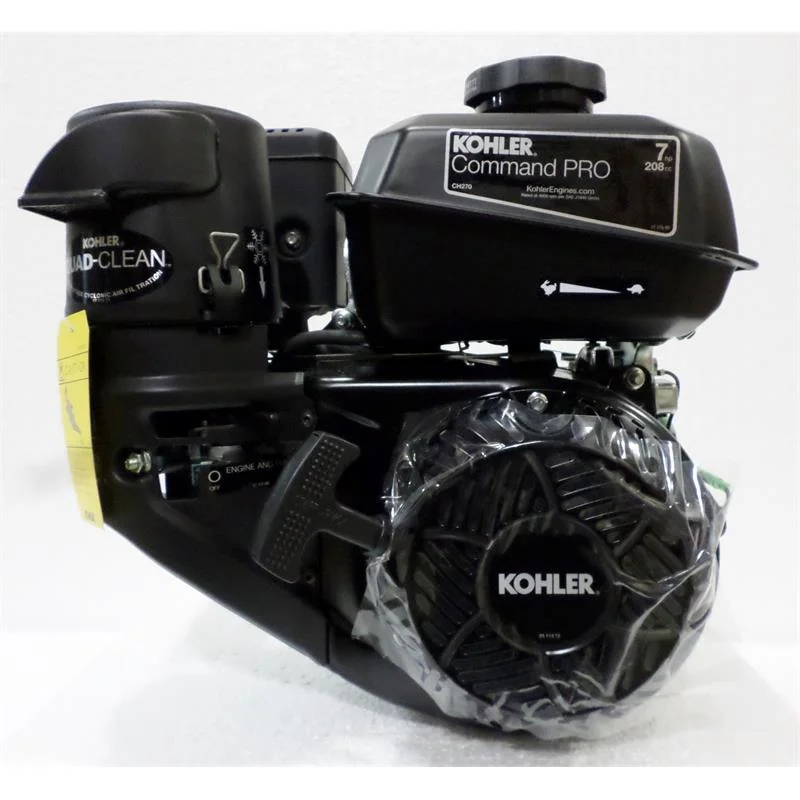

7hp KohlerCommand ProEngine3/4″ x 2-27/64″ keyed shaft, tapped 5/16″-24.OHV, dual ball bearing PTO, cast iron cylinder liner,Recoil start, low oil device.Universal replacement type engine3year warranty.Model CH270-3152.43 lbsCARB certified for sale in California.
Engine Type:
4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
| Model | Command PRO CH270 |
| Max Power @3600 RPM hp (kW) | 7 (5.2) |
| Displacement cu in (cc) | 12.7 (208) |
| Bore in (mm) | 2.8 (70) |
| Stroke in (mm) | 2.1 (54) |
| Peak Torque @ Maximum lbs ft (Nm) | 9.15 (12.4) |
| Compression Ratio | 8.5:1 |
| Dry Weight lbs (kg) | 38.7 (17.5) |
| Oil Capacity U.S. quarts (L) | 0.63 (0.6) |
| Lubrication | Splash |
| Dimensions L x W x H in | 12.7 x 15.2 x 14.2 |
This 7 hp gasoline engine features a 4-cycle, slant cylinder design, with a cast iron cylinder bore and overhead valve for easy access. The Quad-Clean 4-stage air filtration system ensures only clean air enters the engine for maximum power and life of the engine. In addition, this engine is backed by a 3 year commercial warranty.
User-Friendly Maintenance.
- Interference free PTO face
- Dual oil fills and drains
- No tools required all season air cleaner
- Easy access throttle, choke and shutoff
- Oil Sentry automatic low oil engine shutdown system
- Carburetor bowl drain
High Power Performance.
- Overhead valve design
- Increased displacements
- High-inertia flywheel
Extended Run Times.
- Large metal fuel tank and chrome plated cap
- Swirl induction combustion chamber
Quiet, Smooth Operation.
- Oversized muffler with heat shield
- Mechanical governor
- Sound-deadening alloy crankcase
- Silenced air intake
Easy Dependable Starts.
- Electronic ignition system
- Automatic compression release
- Dual ball bearings
- Indexable, easy pull recoil starter
Reliability and Long Life Design.
- Quad-Clean heavy-duty cyclonic air cleaner
- Warm air intake system for cold weather operation
- Cast iron cylinder bore
- Steel-forged crankshaft
- Stellite-faced exhaust valve
- Water trap to separate moisture in fuel
- 3 fuel filters: fill neck, in tank, and carburetor inlet
3 year commerical warranty
-
Equipment Types
This engine powers the following equipment:
- Auger, Grain *Conveyor *Two-Wheel Tractor *Bale Chopper *Feeder
