Kohler Confidant ZT720 V-Twin Engine 21 HP Recoil WAWB 1″ x 3-5/32″ #ZT720-3027

Original price was: $117.00.Current price is: $29.25.

SKU: CNU44405705 Category:

Description

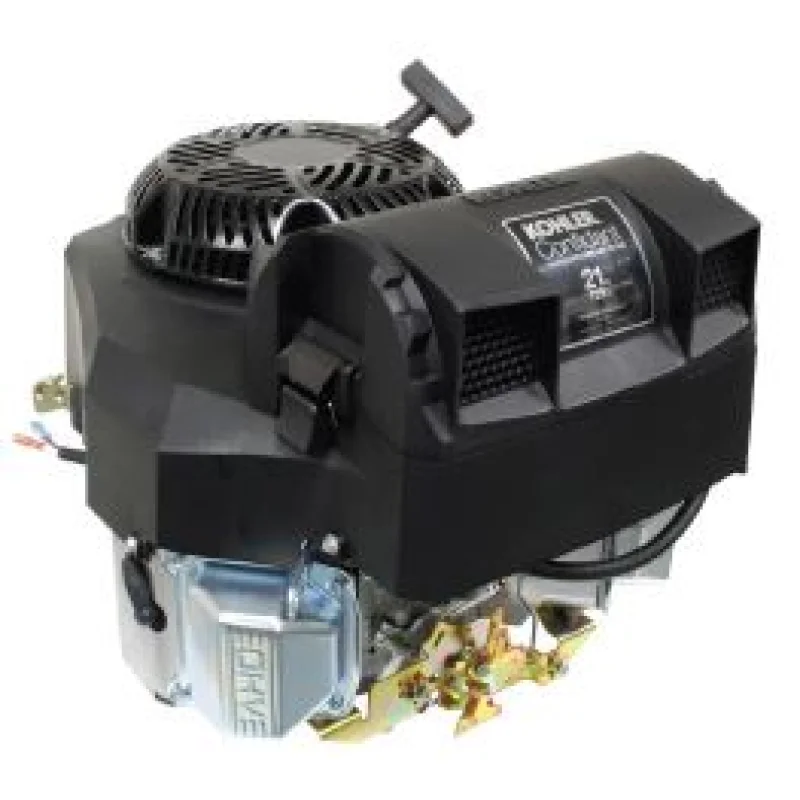

KOHLER Confidant ZT720

ZT720

Unleash the power of Confidant – designed for commercial landscapers and property owners who expect the performance of a pro-grade engine. It’s the muscle you can rely on for wide-area walk-behinds and stand-on mowers, ZTRs and high-end garden tractors.

MODEL NUMBER: ZT720-3027
POWER OUTPUT: 21Horse Power
SHAFT MOUNTING: Vertical Shaft
SHAFT SIZE: (D x L) 1″ x 3-5/32″ 15 Amp Alternator tapped 7/16″ with 1/4″ keyway.
STARTER TYPE: RecoilStarter
APPLICATION(S):
  • Wide Area Walk Behind Mowers
WEIGHT: 91 LBS
REPLACES: Wide Area Walk Behind Mowers
WARRANTY: Covered Through Kohler Service Network

Engine Type:

Four-cycle, twin-cylinder, air-cooled, vertical shaft, gasoline, OHV, with cast iron liner.

Model
ZT720
J1940 Power hp(kW)1 21 (15.7)
Displacement cu in (cc) 44.2 (725)
Bore in (mm) 3.3 (83)
Stroke in (mm) 2.6 (67)
Peak Torque lbs. ft (Nm) 40.7 (55.2)
Compression Ratio 9.1:1
Dry Weight lbs (kg) 91 (41.3)
Oil Capacity U.S. quarts (L) 2 (1.9)
Lubrication Pressure lubrication w/full flow filter
Dimensions L x W x H in 18.8 x 17.5 x 17
Backpressure Limit2 50
J1995 Power hp (kW)3 20.3 (15.2)
J1995 Rated Speed (RPM) 3600

* Length is valve cover to end of blower housing. Width is blower housing width. Height is mounting feet to top of cyclonic air cleaner.1Power (hp) and Torque (lbs ft) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.

2Inches of H20 @ 3600 RPM WOT

3J1995 power and torque certified by 3rd Party Witness
