Description

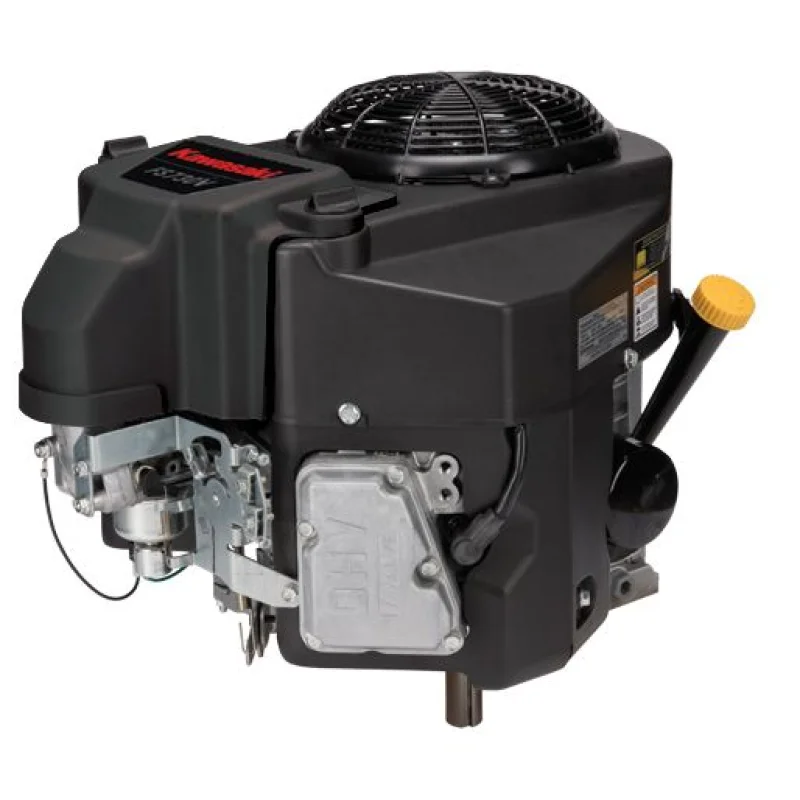

Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
24hpKawasaki OHV
1-1/8″ x 4-5/16″ shaft, tapped 7/16″ with 1/4″ keyway.Electricstart, 15amp alternator.Less fuel tank
Seperate choke & throttleLessMufflerReplacement engine for commercialzero turns and riding mowers.Model FR730V-FS1683lbs.
FEATURES:
- Overhead V-valve
- 90 V-twin
- High performance pressurized lubrication
- Electronic spark ignition
- Automatic compression release
- Internally vented carburetor
- Rotating grass screen
- Cast-iron cylinder liners
|
| SPECIFICATIONS |
| DISPLACEMENT |
726cm3(44.3cu. in.) |
| NUMBER OF CYLINDERS |
2 |
| BORE X STROKE |
3.1 x 3.0 in. (78 x 76mm) |
| COMPRESSION RATIO |
8.2:1 |
| OIL CAPACITY |
2.2U.S. qt(2.1liters) |
| MAXIMUM POWER |
24.0hp(17.9kW)at 3,600rpm |
| MAXIMUM TORQUE |
40.0ft lbs(54.2Nm)at 2,400RPM |
| DRY WEIGHT |
91.5lbs(41.5kg) |
|
Kawasaki Mufflers (not included)
Kawasaki 726cc V-Twin Muffler for Riding Mowers KAWV726
|
Kawasaki 726cc Engine Oil Filter Side Muffler Kit KAW726MUFOF
|
Kawasaki FS/FX 726cc Engine Muffler KAW726MUFZTRSS
|
