Description

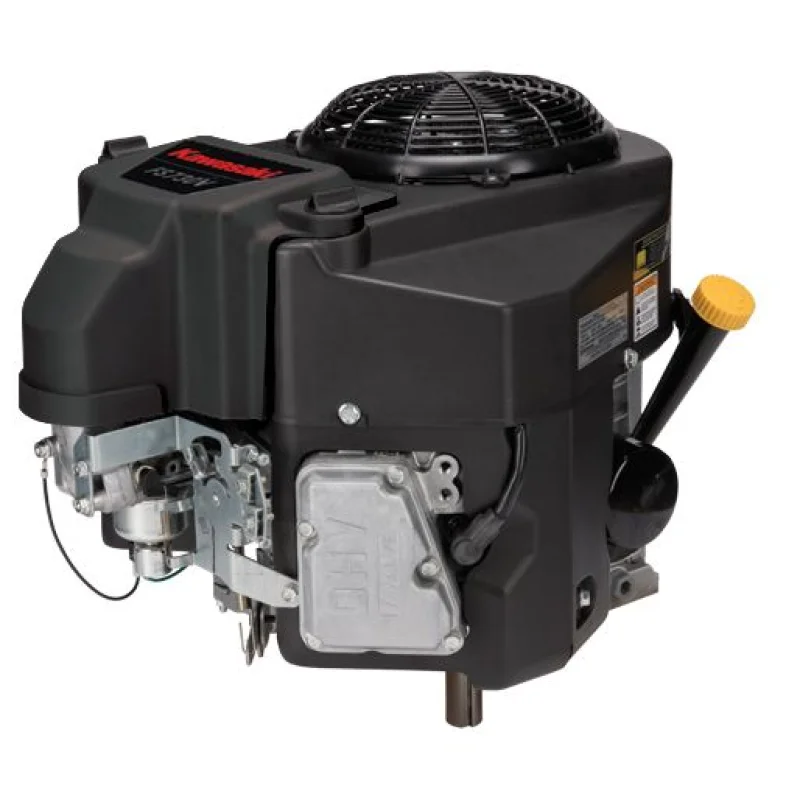

Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
24hpKawasaki OHV
1″ x 3-5/32″ shaft, tapped 7/16″ with 1/4″ keyway.Electricstart, 15amp alternator.Less fuel tank
Seperate choke & throttleLessMufflerReplacement engine for commercialzero turns and riding mowers.3year consumer from Kawasaki. Model FR730V-LS00 (Replaces FR730V-HS00, FR730V-JS00, FR730V-KS00)83lbs.
FEATURES:
- Overhead V-valve
- 90 V-twin
- High performance pressurized lubrication
- Electronic spark ignition
- Automatic compression release
- Internally vented carburetor
- Rotating grass screen
- Cast-iron cylinder liners
| SPECIFICATIONS | |
|---|---|
| DISPLACEMENT | 726cm3(44.3cu. in.) |
| NUMBER OF CYLINDERS | 2 |
| BORE X STROKE | 3.1 x 3.0 in. (78 x 76mm) |
| COMPRESSION RATIO | 8.2:1 |
| OIL CAPACITY | 2.2U.S. qt(2.1liters) |
| MAXIMUM POWER | 24.0hp(17.9kW)at 3,600rpm |
| MAXIMUM TORQUE | 40.0ft lbs(54.2Nm)at 2,400RPM |
| DRY WEIGHT | 91.5lbs(41.5kg) |
