Description

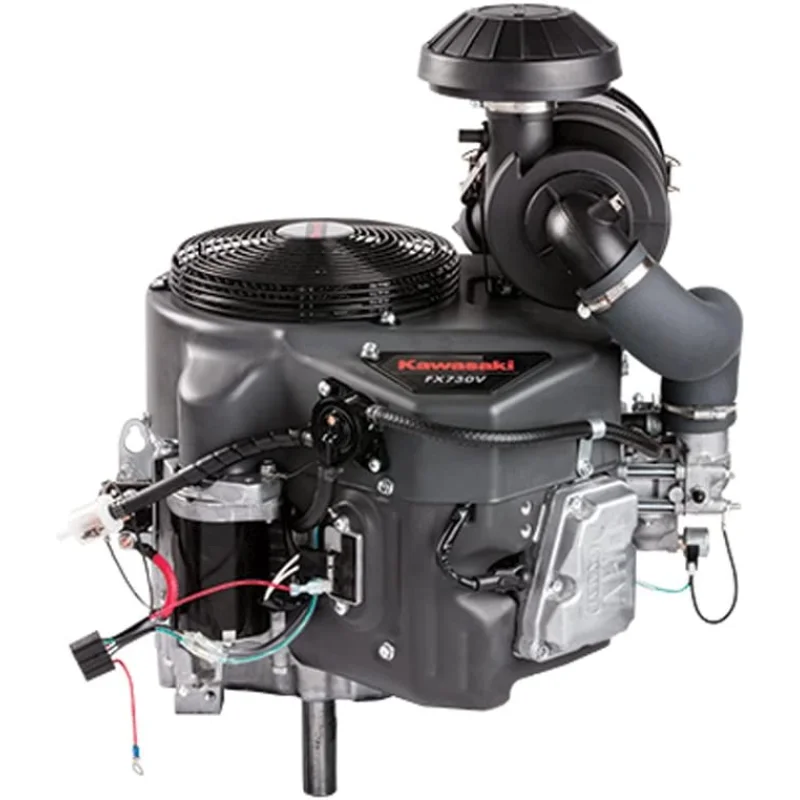

Kawasaki FX Series are compact, 90-degree V-twin engines which feature hemispherical combustion chambers and overhead V-valve technology that helps ensure low emissions, high power, and smooth operation. Other features include a twin barrel, internally vented carburetor with fuel shut-off solenoid, large capacity fuel pump, and dual stage canister air filter.
Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
23.5hpKawasaki OHV
1-1/8″ x 4-5/16″ shaft, tapped 7/16″ with 1/4″ keyway.Electric start, 15amp alternator.Less fuel tank
Seperate choke & throttleLessMuffler
Heavy Duty Dual Stage Canister Air FilterHigh Efficiency Oil Cooler
Large Capacity Fuel Pump
Replacement engine for commercial zero turns and riding mowers.Model FX730V-CR00 (Replaces FX730V-DS00.FX730V-FS00,FX730V-AR00).
FEATURES:
- Overhead v-valve
- 90 V-twin
- High performance pressurized lubrication
- Electronic spark ignition
- Automatic compression release
- Internally vented carburetor
- Rotating grass screen
- Dual stage canister air filter
- Cast-iron cylinder liners
- Metal engine cover
- Heavy-duty shift-type starter
|
| SPECIFICATIONS |
| DISPLACEMENT |
726cm3 (44.3cu. in.) |
| NUMBER OF CYLINDERS |
2 |
| BORE X STROKE |
3.1 x 3.0 in. (78 x 76mm) |
| COMPRESSION RATIO |
8.2:1 |
| OIL CAPACITY |
2.2U.S. qt (2.1liters) |
| MAXIMUM POWER |
23.5hp (17.5kW)at 3,600rpm |
| MAXIMUM TORQUE |
39.9ft lbs (54.1Nm)at 2,400RPM |
| DRY WEIGHT |
102.7lbs (46.6kg) |
|
Kawasaki Mufflers (not included)
Kawasaki 726cc V-Twin Muffler for Riding Mowers KAWV726
|
Kawasaki 726cc Engine Oil Filter Side Muffler Kit KAW726MUFOF
|
Kawasaki FS/FX 726cc Engine Muffler KAW726MUFZTRSS
|
