Description
15hpKawasaki OHV 603cc Engine
1-1/8″ x 4-5/16″ shaftRecoil start, Clutch Coil.Less fuel tank, has fuel pump
Seperate choke & throttleLess mufflerUniversal replacement engine for commercialwide area walk behinds.3year consumer from Kawasaki. Model FS541V-ES28.83lbs.

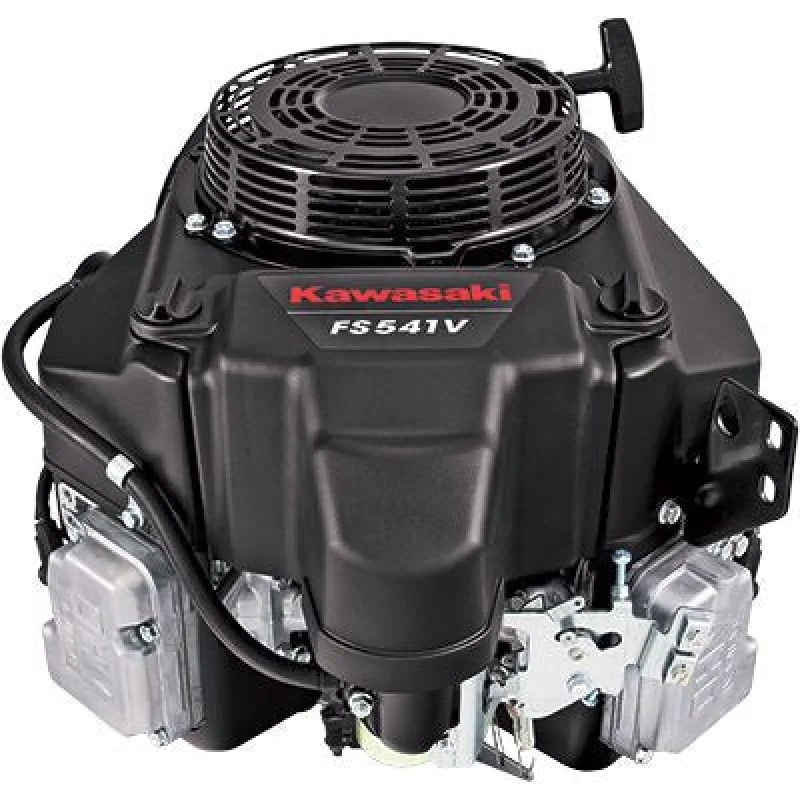

FS541V
15.0 hpThe FS541V engine puts the extra push you need for heavy lawn care needs.This 90 V-twin engine features high performance pressurized lubrication and an internally vented carburetor. This engine is ready to power your ZTR, wide-area walk-behind mower, or lawn tractor. |
- Overhead V-valve
- Integrated clean out ports
- 90 V-twin
- Pressurized lubrication system
- Electronic spark ignition
- Automatic compression release
- Internally vented carburetor
- Rotating grass chopper screen
- Dual element air filtration system with reinforced primary filter
- Cast-iron cylinder liners
| Specifications |
| Displacement |
603 cc (36.8 cu. in.) |
| Number of Cylinders |
2 |
| Bore x Stroke |
2.9 x 2.8 in. (73 x 72mm) |
| Compression Ratio |
8.1:1 |
| Oil capacity w/filter |
1.8 U.S. qt ( 1.7 liters) |
| Maximum Power |
15.0 hp (11.2 kW)at 3,600 RPM |
| Maximum Torque |
31.0 ft lbs (42.1 Nm)at 1,800 RPM |
| Dry weight w/o muffler |
80.9 lbs (36.7 kg) |
|
