Description

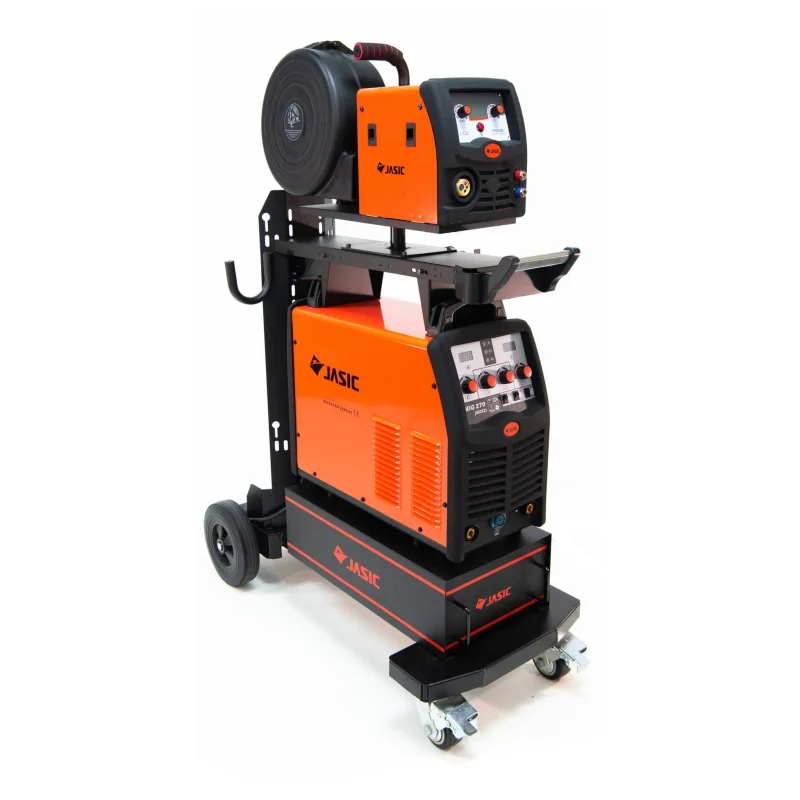

The Jasic Multi Process MIG 270 Separate is a single-phase 230V welding inverter delivering up to 270 amps at a 30% duty cycle, backed by an industry-leading five-year warranty.
The ZXJM-272S MIG inverter package comes complete with a 4-roll wire feed unit and an inverter trolley capable of accommodating a full-size gas cylinder. It supports wire diameters of 0.6, 0.8, 1.0, and 1.2mm, and is available in both air-cooled and water-cooled versions.
Package includes:
- 4-roll wire feed unit
- Trolley and MIG torch
- Gas regulator and hose
- Work return lead and clamp
- 5-year warranty*
Key features:
- Single-phase IGBT inverter
- Digital ammeter and voltmeter
- Advanced control circuitry
- Burn-back control and wire inching
- 2T/4T trigger function
- Power and status LED indicators
- Gas check function
- Variable inductance
Technical specifications:
- Input voltage: AC 230V, 50/60Hz
- Effective input current: 28.9A
- Input power: 12.1kVA
- Voltage adjustment range: 1129V
- Current range: 30270A
- Duty cycle (at 40C): 270A @ 30%
- No-load voltage: 54V
- Wire speed: 016m/min
- Efficiency: 85%
- Power factor: 0.75
- Protection/insulation class: IP21S/F
- Dimensions: 1020 505 1460 mm
- Weight: 101kg
*Five-year warranty subject to product registration.
