Description

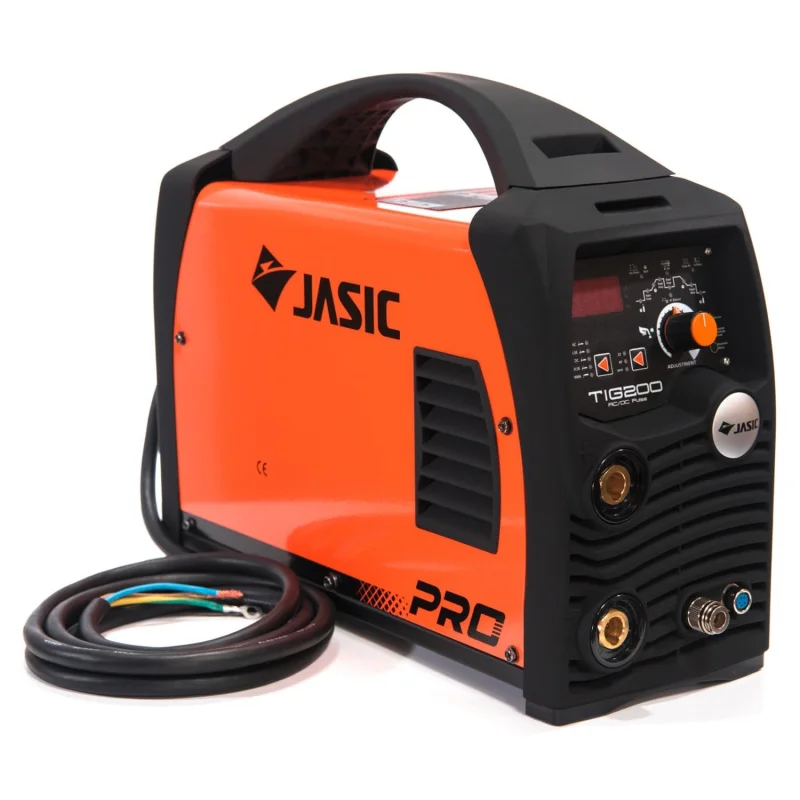

The Jasic 200P is a single phase AC/DC mini digital tig welding inverter package that is portable and weighs only 9kg.
The JT-200DS model has a host of features including easy to use control panel with digital weld cycle, welding modes and program memory feature for storing a variety of welding parameters.
CALL TO CHECK STOCK AVAILABILITY 0141 763 1226
Package:
JT-200DS inverter
Tig torch and adaptor
Gas regulator
Return lead and clamp
5 year Jasic warranty*
Optional extras: JIT-01 tig trolley and JFC-05 foot pedal.
Main Features:
TIG Pulse AC/DC with digital control
Programme memory storage
Easy to use control panel
Pre-post flow time, up/down slope
Pulse adjustment
Pulse frequency, pulse duty, arc force, clean width
AC function for aluminium and aluminium alloys
DC TIG for carbon steel, stainless, copper and non-ferrous metals
High speed pulse with precise adjustment for ultimate weld bead
Technical Specifications:
Input Voltage: AC 230V – 50/60Hz
Rated Input Current: 30
Current Range (A): MMA 10 – 160 / TIG 5 – 200
Duty Cycle: MMA 160A @ 30% / TIG 200A @ 25%
No-Load Voltage (V): 56
Power Factor: 0.7
Protection/Insulation Class: IP21S/B
Dimensions (mm): 435 x 160 x 340
Weight – Power Source (kg): 9
*5 year warranty is subject to product registration
