Description

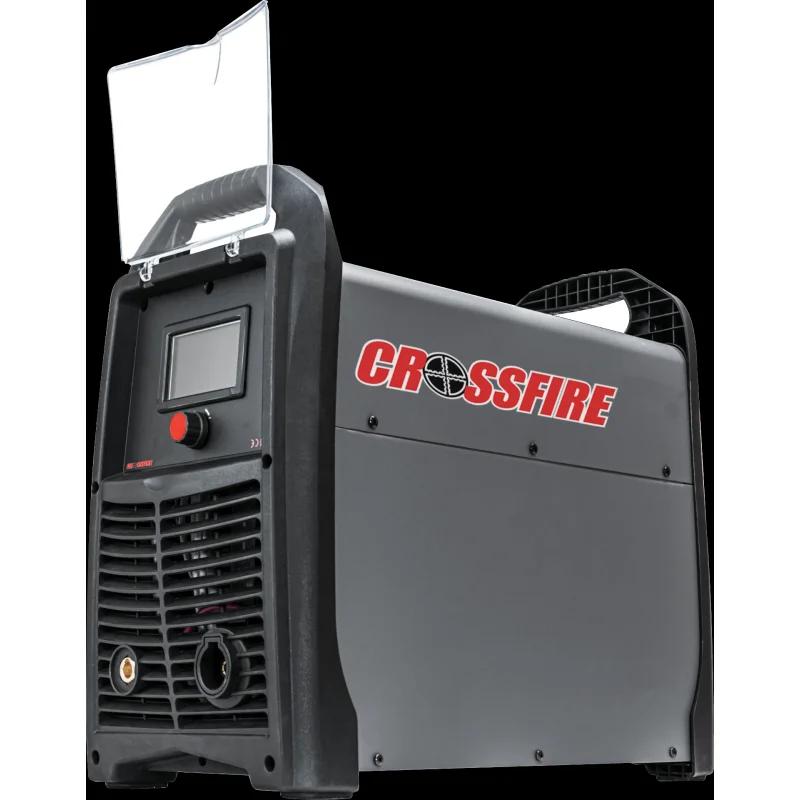

Invercut 105HD Plasma Cutter
CF-995105
Crossfire has created a powerful, versatile, easy to operate and cost-effective
range of Invercut plasma power supplies for manual and mechanized applications.
The Crossfire Invercut 105HD systems fit different needs, from small workshops to
heavy-duty production facilities with continuous operation. Combined with the
perfectly fitting torches and cable leads, they provide outstanding cutting, gouging and grid-cutting performance.
DESIGNED FOR THE OPERATOR
Easily control gas flow, current, and pilot arc with the included GRID mode for automatic switching between the pilot and main arc. The HD line is mobile with an ergonomic handle that reduces operator strain when cutting in multiple locations.
ON-DEMAND MECHANIZED AND AUTOMATED PERFORMANCE
Pair with an automated solution or operate by hand to cut aluminum, stainless steel, and hardox. The HD line uses cooled, shielded plasma capable of cleanly cutting materials up to 1-3/8.
Features
- Industry leading 4.3″ LCD Display
- Gouging & marking capabilities
- Automatic settings: Gas, Electricity & Pilot
- Quick connect torch
- Thermal overload protection
- CNC ready
- Max Severance: 1-3/8″ (35mm)
Piercing Capacity: 1″ (25mm)
Includes:
- 105TTH 8m Hand Torch
- 10 ft. Ground Clamp & cable
|
Rated Input |
230V – 1 Phase |
|
Part Number |
CF-995105 |
|
Output |
20 – 85A (1-phase 230V) 20 – 105A (3-phase 575V) |
|
Duty Cycle |
70% @ 85A 1ph – 230V 60% @ 105A 3ph – 208V 80% @ 105A 3ph – 460/575V |
|
Gas Flow |
3.5 CFM @ 75 PSI (5.2 bar) |
|
Dimensions |
H. 24 (613 mm) W. 12 (302 mm) L. 20 (515 mm) |
|
Weight |
Net: 101 lbs (46 kg) |
