Description

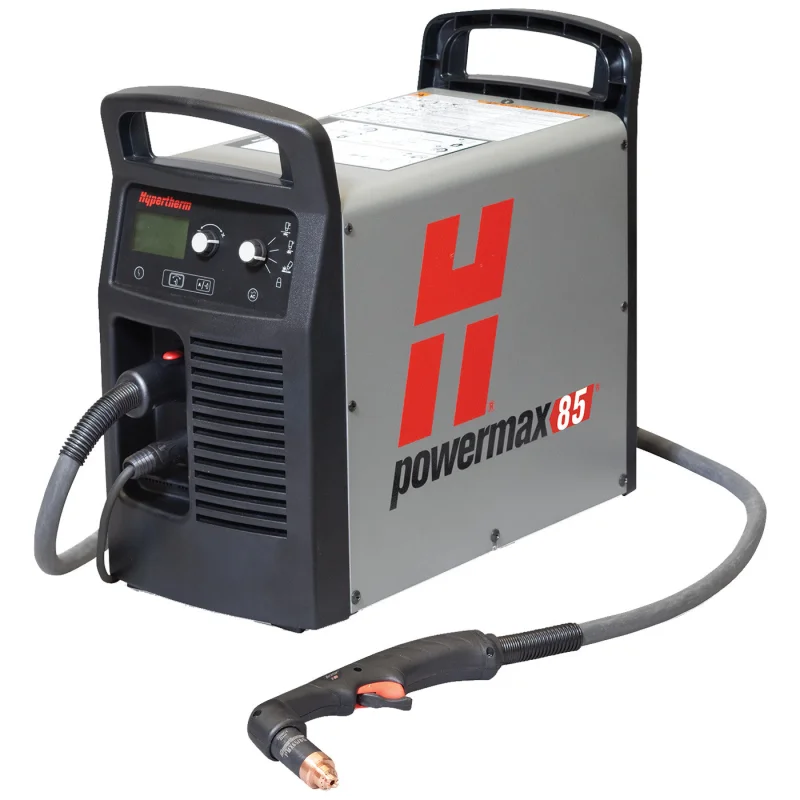

The Powermax 85 hand plasma cutting system is a three phase 400v model for cutting 25mm (1″) thick metal and has an output current of 85 Amps.
This Hypertherm CE plasma package includes a 75 head torch in 7.6m (20ft) or 15.2m (50ft) length. The warranty is 12 months on the torch and 3 years on the power source.
Features Include:
Smart Sense: Automatically sets pressure
Spring Start: Delivers consistent starting
Duramax Torches: Multiple styles, high impact, heat resistant
Hypertherm Powermax 85 Product Sheet
CONTACT US FOR FURTHER REDUCTIONS 0141 763 1226
Cutting Capacity:
25mm (1″) @ 500mm/min (20 ipm)
32mm (1-1/4″) @ 250mm/min (10 ipm)
Severance:
38mm (1-1/2″) @ 125mm/min (5 ipm)
Gouging:
Removal Rate 8.8kg/hour (19.5 lbs/hr)
Groove Profile 5.8mm x 7.1mm (0.23″ x 0.28″)
Technical Specification:
Input Voltage ( 10%):
380/400v, 3 Phase, 50 – 60Hz
Input Current @ 12.2kW:
380/400v, 3Ph, 20.5/19.5 A
Output Current(Amps): 25 – 85 A
Rated Output Voltage: 143 VDC
Duty Cycle @ 40C (104F)
60% @ 85 A, 100% @ 66 A
Open Circuit Voltage (OCV): 270 VDC
Dimensions (with handles): 500 x 234 x 455mm
Weight (including 7.6m torch): 28kg
Input Power Cable Length: 3m (10ft)
Power Supply Type: Inverter – IGBT
Gas Supply: Clean, dry, oil free air or nitrogen
Recommended Gas Inlet Flow Rate/Pressure:
Cutting 189l/min (400 scfh; 6.7 scfm) @ 85 psi (5.9 bar)
Gouging 212 l/min (450 scfh; 7.5 scfm @ 70 psi (4.8 bar)
Warranty: Power supply 3 year / Torch 1 year
