Description

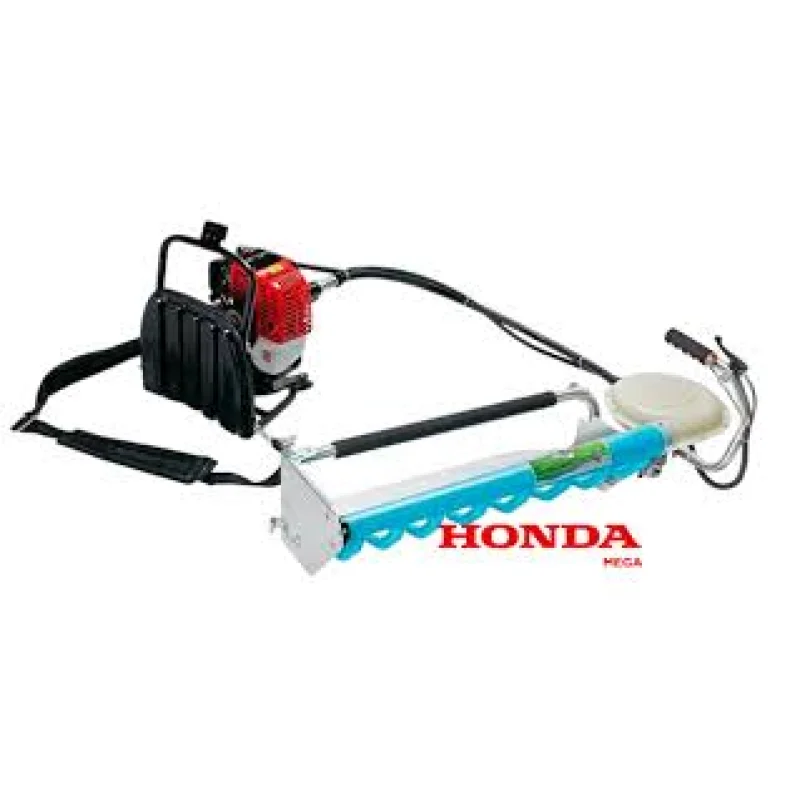

Honda HSTH/35 Tea Harvester (500mm, GX35)
Overview
-
Engine: Honda GX35, 4-stroke, single-cylinder, air-cooled
-
Fuel Type: Unleaded gasoline (86+ octane)
-
Cutting Width: 500mm (also available in 450mm or 600mm)
-
Design: Backpack harness for ergonomic use on inclines or extended shifts
-
Gearbox: Heavy-duty, lightweight flame-resistant casing
-
Use Case: Precision tea-plucking in plantationshigh durability, low fatigue
General Specs
-
Engine Displacement: 35.8cm
-
Power Output: ~1.0kW (1.3HP) @ 7,000rpm
-
Torque: ~1.6Nm @ 5,500rpm
-
Weight: ~10.2kg (harvester body; engine only ~3.3kg)
-
Dimensions
-
Engine block: ~198234240mm
-
Knife rack: ~1052530cm
-
Engine Features
-
Bore & Stroke: 3930mm
-
Compression Ratio: 8.0:1
-
Fuel Tank Capacity: ~0.63L
-
Oil Capacity: ~0.10L
-
Lubrication: Crankcase pressure/oil mist, OHC with timing belt
-
Cooling: Forced-air
-
Starting System: Recoil
-
Ignition: Transistorized magneto
-
Fuel System: Diaphragm carburetor with accelerator pump
-
Position Flexibility: 360 inclinable
Performance & Efficiency
-
Net Power Rating: 1.0kW (1.3HP) @7,000rpm
-
Fuel Consumption: ~0.71L/hour at rated power
-
Dry Weight (engine): ~3.3kg
-
Noise Level: Lower than comparable 2-stroke units
-
Blade Material: SK5 carbon tool steelstrong and wear-resistant
Operational Advantages
-
Low Noise & Emission: 4-stroke engine cleaner than 2-strokes
-
Backpack Comfort: Improved backrest and wider shoulder straps for fatigue reduction
-
High Efficiency: ~40 faster than manual pluckers
-
Sturdy Build: Optimized airflow, uniform suction, stable high-temp performance
