Description

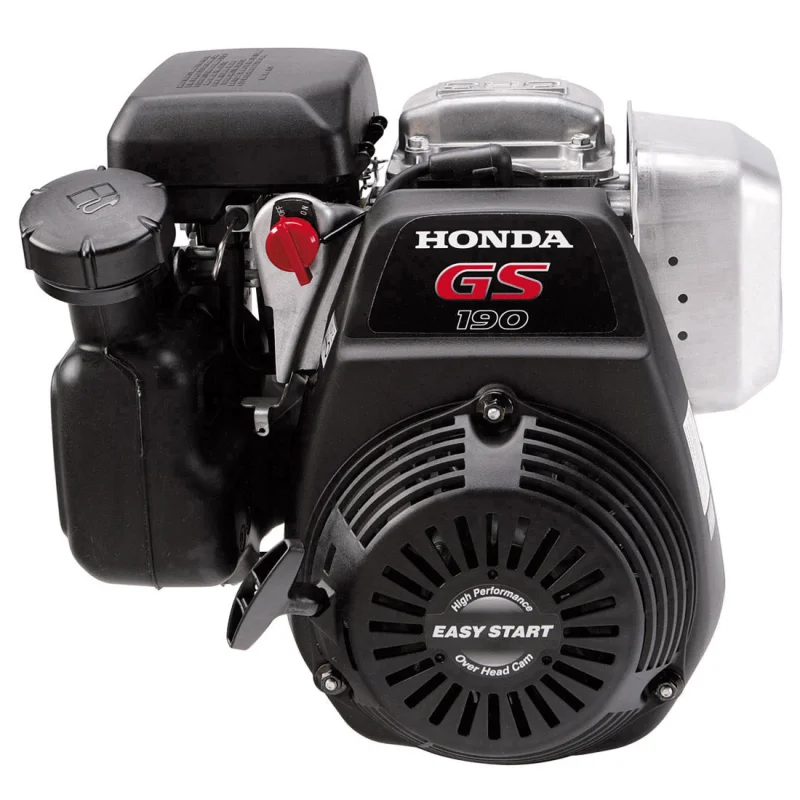

5.2 Net HP Formerly Rated 6 HP3/4″ x 2-7/16″ keyed shaft. OHC, ball bearing PTO,cast iron sleeve, extra quiet and lightweight,2 year consumer/ 1 year commercial warranty.Fixed Speed Throttle.Universal bolt pattern for easy repowering.This engine is a more rugged design than the GC series Honda engines.Model GS190-QHAF.37 lbsFeatures
Honda OHV engine
Horizontal shaft
Cast iron cylinder sleeve
Light Duty Commercial
Easy starting, fuel efficient
Dual element air cleaner
EPA/CARB compliant
| Engine Type | Air-cooled 4-stroke OHC |
| Bore x Stroke | 2.7 x 2.0 in (69 x 50 mm) |
| Displacement | 11.4 cu in (187 cm3) |
| Net Power Output* | 5.2 HP (3.9 kW) @ 3,600 rpm |
| Net Torque | 8.3 lb-ft (11.3 Nm) @ 2,500 rpm |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| Compression Ratio | 8.5:1 |
| Carburetor | Horizontal type butterfly valve |
| Ignition System | Transistorized magneto |
| Starting System | Recoil |
| Lubrication System | Splash |
| Governor System | Centrifugal Mechanical |
| Air Cleaner | Dual element |
| Oil Capacity | 0.61 US qt (0.58l) |
| Fuel Tank Capacity | 1.9 U.S. qts (1.8 liter) |
| Fuel | Unleaded 86 octane or higher |
| Dry Weight | 30.4 lb (13.8 kg) |
