Description

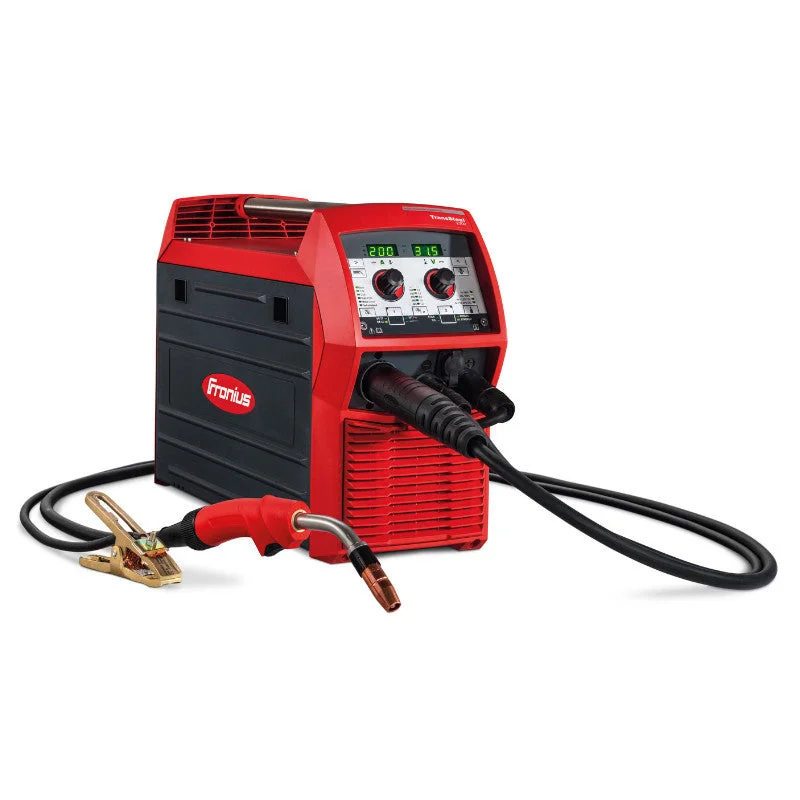

The Fronius TransSteel 2200C is a compact multi process 3 in 1 inverter system for MIG/MAG, MMA and TIG processes which is ideally suited to workshop, sitework and maintenance applications.
The TransSteel 2200 power source is available in 230v or 110/230v and comes in a range of package options; we can also provide bespoke solutions to meet your specific requirements.
Fronius TransSteel 2200 Multi Process Inverter Brochure
Features:
- Multi process system
- 230v or 110/230v option
- 100-200mm spool diameter
- Up to 1.2mm wire diameter
- 1.5-4.0mm rod diameter
- 2R wire speed
- Polarity reverser
- Gas cooled
- 2 easy jobs
- 1 phase operation
Technical Specification:
- Current min/max 10A/230A
- Current range @ 10min/40C:
- MAG: 210A / 30% | 170A / 60% | 150A / 100%
- MMA: 180A / 35% | 150A / 60% 130A / 100%
- TIG: 230A / 35% | 200A / 60% | 170A / 100%
- Operating voltage:
- MIG/MAG 14.5-24.5v
- MMA 20.4-27.2v
- TIG 10.4-19.2v
- Mains voltage 230v
- Open circuit voltage 90v
- Mains fuse 16A
- Dimensions 560 x 215 x 370mm
- Protection IP23
- Weight 15kg
- 3 year warranty, registration required
MIG package:
4,075,220,858 or 4,075,220,860
- Power source 230v or 110/230v
- MIG torch MTG 2100/FSC/3m/45
- Starter Kit 0.8mm & 1.0mm
- Earth cable 25mm2 x 4m
- Gas hose 1.5m
Multi process package:
4,075,221,858 or 4,075,221,868
(all of the above plus the following)
- TIG torch TTG2200A F/UD/4m
- Electrode Holder 25mm2 x 4m
We stock an extensive range of Fronius welders, consumables and spares.
