Description

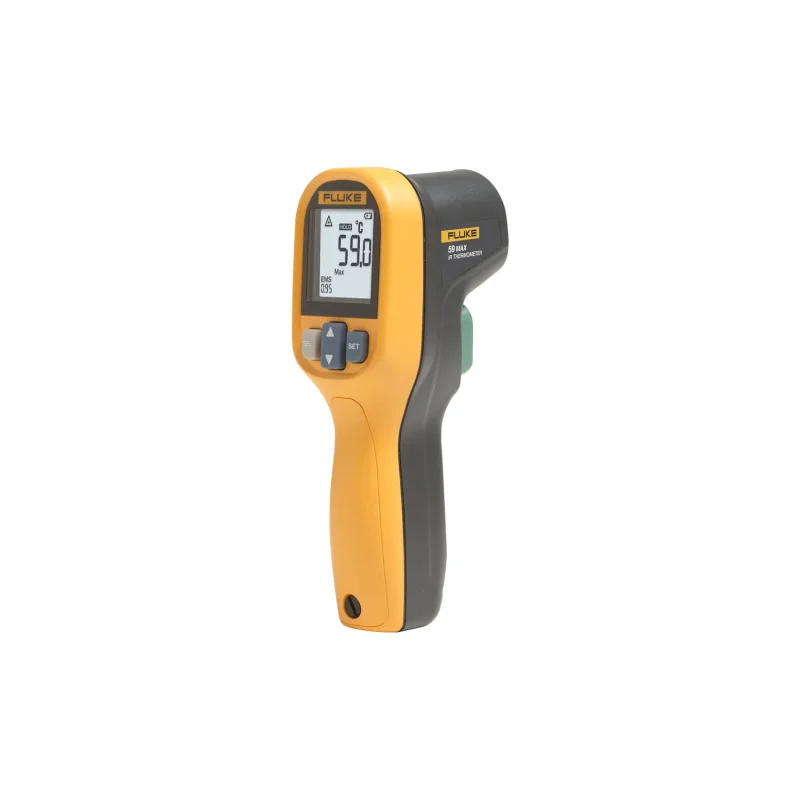

Fluke59 MAX Mini Infrared Thermometer Specifications
Temperature Measurement
-
Range: 30C to 350C (22F to 662F)
-
Accuracy (at 23C 2C):
-
0C: 1.5C or 1.5% of reading (whichever is greater)
-
<0C to 10C: 2.0C
-
<10C: 3.0C
-
32F: 3.0F or 1.5%
-
14F to <32F: 4.0F
-
<14F: 6.0F
-
-
Response Time: <500ms for 95% response
-
Spectral Response: 814m
-
Emissivity: Adjustable from 0.10 to 1.00
-
Optical Resolution (D:S): 8:1 (measured at 90% energy)
Display & Functions
-
Display Resolution: 0.1C or 0.2F
-
Selectable Functions: MAX, MIN, AVG, DIF readings
-
High/Low Alarms: Audible and visual alerts for set limits
-
Backlit LCD: For visibility in low-light environments
Power & Battery
-
Battery Type: 1 AA (IEC LR06)
-
Battery Life: Approximately 12 hours (with laser and backlight on)
Physical & Environmental
-
Dimensions: Approximately 156 80 50mm
-
Weight: ~220g
-
Operating Temperature: 0C to 50C (32122F)
-
Storage Temperature: 20C to +60C (4 to 140F), battery removed
-
Humidity: 10% to 90% RH, non-condensing at 30C
-
Altitude: Operating up to 2000m, storage up to 12,000m
-
Drop Resistance: 1m (3.3ft)
-
Ingress Protection: IP40
-
Shock/Vibration Compliance: Meets IEC 68-2-27 and IEC 68-2-6
Quick Specs Table
| Feature | Specification |
|---|---|
| Temperature Range | 30C to 350C (22F to 662F) |
| Accuracy | 1.5C or 1.5% (varies with temp) |
| Response Time | <500ms |
| Optical Resolution | 8:1 Distance-to-Spot ratio |
| Emissivity Range | Adjustable: 0.10 to 1.00 |
| Display Functions | MAX/MIN/AVG/DIF, Hi/Lo alarms |
| Power Source | 1 AA battery |
| Operating Conditions | 050C; 1090% RH |
| Protection | IP40, 1m drop test |
| Weight & Dimensions | 220g; 156 80 50mm |
