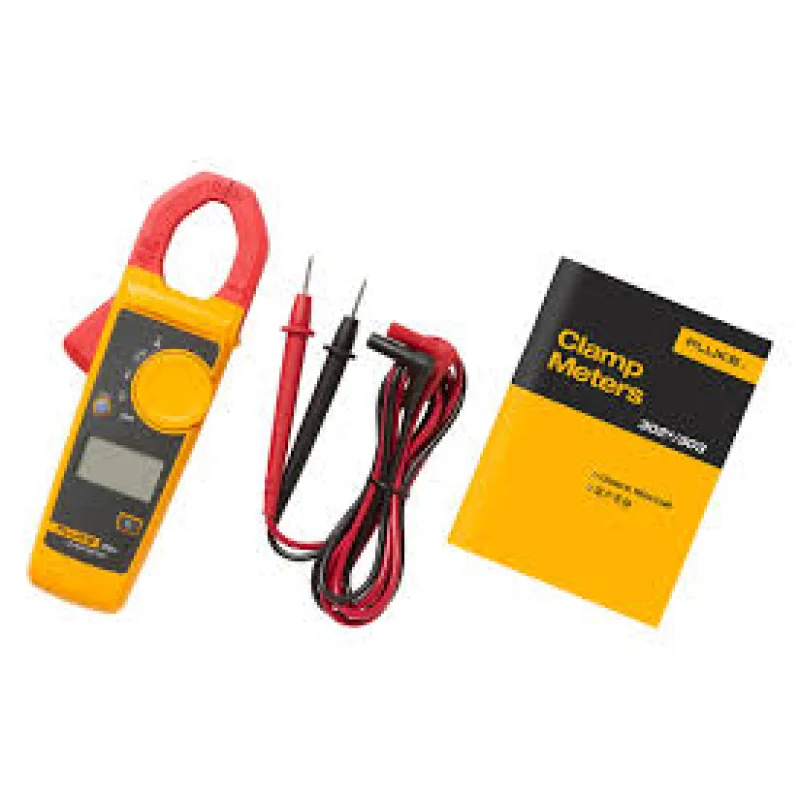

Fluke 302+ Clamp Meter Specifications
Current & Voltage Measurement
-
AC current: Up to 400A
Accuracy: 1.8% + 5 digits -
AC voltage: 400V / 600V ranges
Accuracy: 1.5% + 5 digits -
DC voltage: 400V / 600V ranges
Accuracy: 1.5% + 5 digits
Resistance & Continuity
-
Resistance range: Up to 4,000
Accuracy: 1.0% + 5 digits -
Continuity detection: Audible alert for resistance 70
Display & Features
-
Display type: Backlit LCD
-
Data hold: Yes
-
Screen update rate:>2 readings per second
Mechanical
-
Jaw opening: 30mm (suitable for most single conductors)
-
Dimensions (HxWxD): 208 58.5 28mm
-
Weight: Lightweight, designed for portable use
Power
-
Battery type: 2 AAA (1.5V) batteries
-
Battery life: Typical usage supports extended battery life
Safety & Build
-
Safety category ratings:
-
CAT IV 300V
-
CAT III 600V
-
-
Operating temperature: 0C to 40C
-
Storage temperature: 10C to 50C
-
Relative humidity: 80% (non-condensing) at 10C30C
Accessories Included
-
Test leads: Standard test leads (typically TL75 type)
-
Instruction manual: Included in box
-
Protective cap: May be included depending on regional packaging
Summary Table
| Feature | Specification |
|---|---|
| AC Current | Up to 400A (1.8% + 5) |
| AC/DC Voltage | Up to 600V (1.5% + 5) |
| Resistance | Up to 4k (1.0% + 5) |
| Continuity | Audible 70 |
| Display | Backlit LCD with data hold |
| Jaw Opening | 30mm |
| Dimensions | 208 58.5 28mm |
| Batteries | 2 AAA (alkaline) |
| Safety Rating | CAT IV 300V, CAT III 600V |
| Operating Temperature | 0C to 40C |
| Accessories | Test leads, manual, battery |
