Description
MAKE: EAE

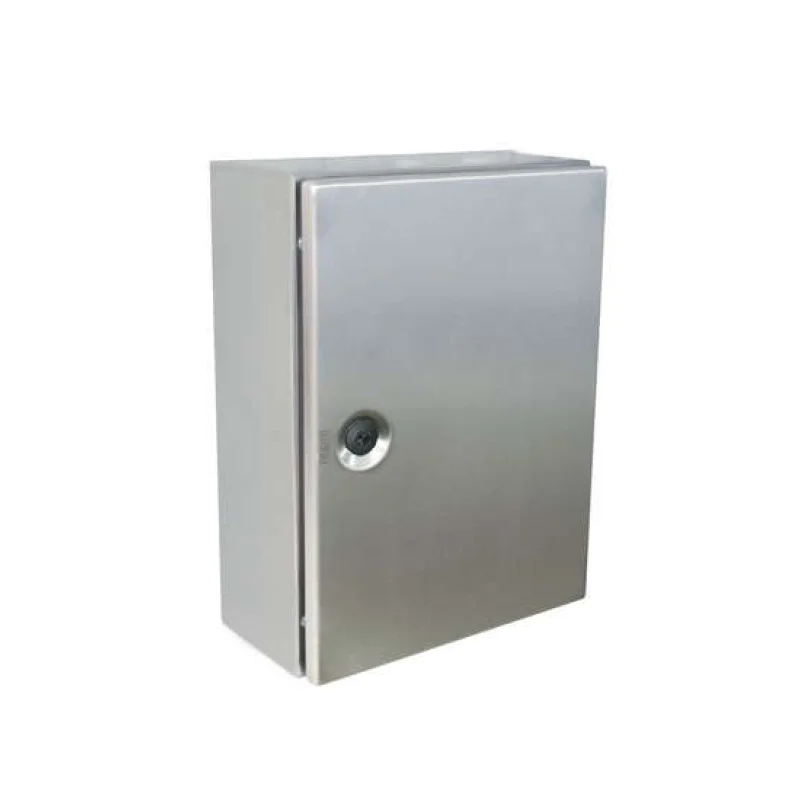

Stainless steel wall enclosure
These series of electrical enclosures are designed for general purpose electrical applications. Clean and smooth surface appearance has been provided for welded surfaces.
Application: Indoor, Outdoor
Protection Class: IP66
Installation Type: Wall mounted
Lock set: Plastic – standard; Stainless steel – Optional
Features & Benefits
– Polyurethane gasket: Foam-in-place gasket, does not lose its elasticity over time and provides protection against dust and water.
– Stainless steel hinge: Thanks to stainles steel hinge the door can be opened up to 125 angle. This feature provides comfortable access into the enclosure.
– Optional stainless steel bracket: With bracket set enclosure mounting on the wall can be done easily and quickly. Thanks to 90 swivel feature of the bracket, its positioning can be chosen either horizontally or vertically. Bracket set is not included in standard supply contents, it should be ordered separately.
– Asymmetrical canopy: It allows the use of bracket for wall mounting. Thanks to their reverse angle edge design above door threshold, rain water flows out of the enclosure.
