Description

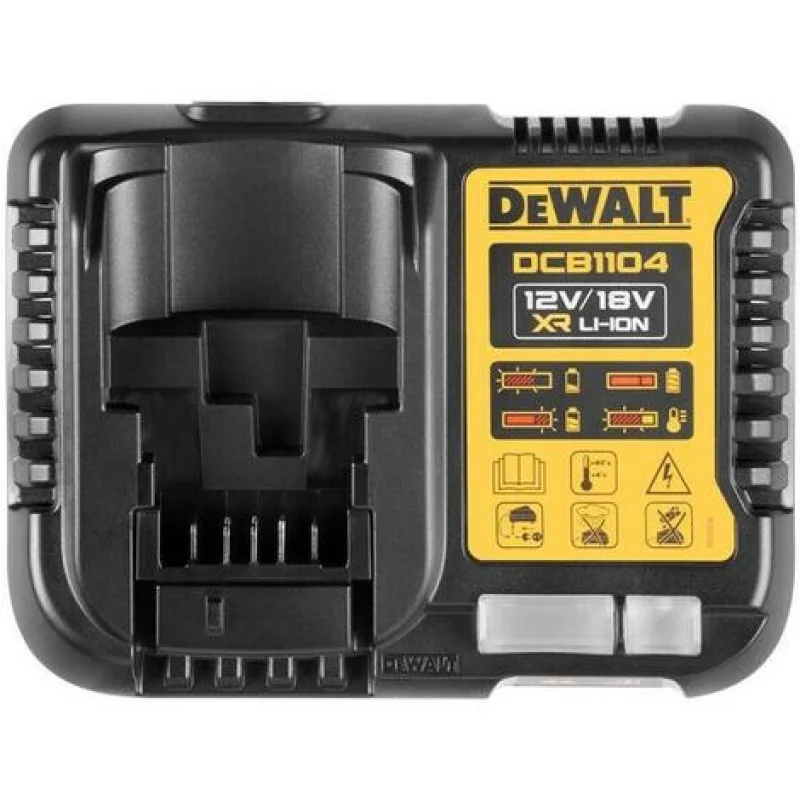

Brand: DeWalt
Model: DCB1104-GB
Type: Slim / Compact Lithium-Ion Battery Charger
Region Version: GB (United Kingdom / EU mains spec)
Electrical Input
-
Input Voltage: 230240 V AC
-
Frequency: 5060 Hz
-
Current: Designed for standard mains supply
Output / Charging
-
Output Charging Current: 4.0 amps
-
Battery Compatibility:
-
DeWalt XR Li-Ion slide-on batteries
-
10.8 V XR
-
12 V XR
-
14.4 V XR
-
18 V XR
-
FlexVolt batteries charged in 18 V mode
-
Typical Charging Times (Approximate)
(Actual times vary by battery age, condition, and temperature)
-
1.5 Ah: ~2530 minutes
-
2.0 Ah: ~3035 minutes
-
4.0 Ah: ~6075 minutes
-
5.06.0 Ah: ~90135 minutes
-
Larger capacity XR packs (9 Ah12 Ah): ~135180+ minutes
Design Features
-
Slim, compact form factor for easy transport and mounting
-
LED status indicators for: charging, fully charged, fault condition, temperature issues
-
Automatic temperature monitoring protects battery cells during charge
-
Slide-on battery interface for secure connection
-
Wall-mountable footprint with mounting slots
-
Integrated cable management (on some units)
Physical Characteristics
-
Weight: Approx. 0.450.50 kg
-
Dimensions (approx.):
-
Height: ~180 mm
-
Width: ~120 mm
-
Depth: ~90 mm
-
-
Housing: Durable impact-resistant plastic
-
Cooling: Passive ventilation slots
Compatibility Notes
-
Works with all DeWalt XR Li-Ion slide-on batteries across supported voltages
-
FlexVolt packs are charged at the 18 V level in this charger (full FlexVolt 54 V charging requires a high-amp fast charger)
Straight-Talk Reality
-
Not a fast charger: 4 A output is moderate good balance of speed vs battery life
-
Large batteries take longer: High-capacity packs (e.g., 6 Ah and above) will take significantly more time
-
Best used for jobsite, portable, and everyday charging, not rapid turnaround in high-volume environments
