Description

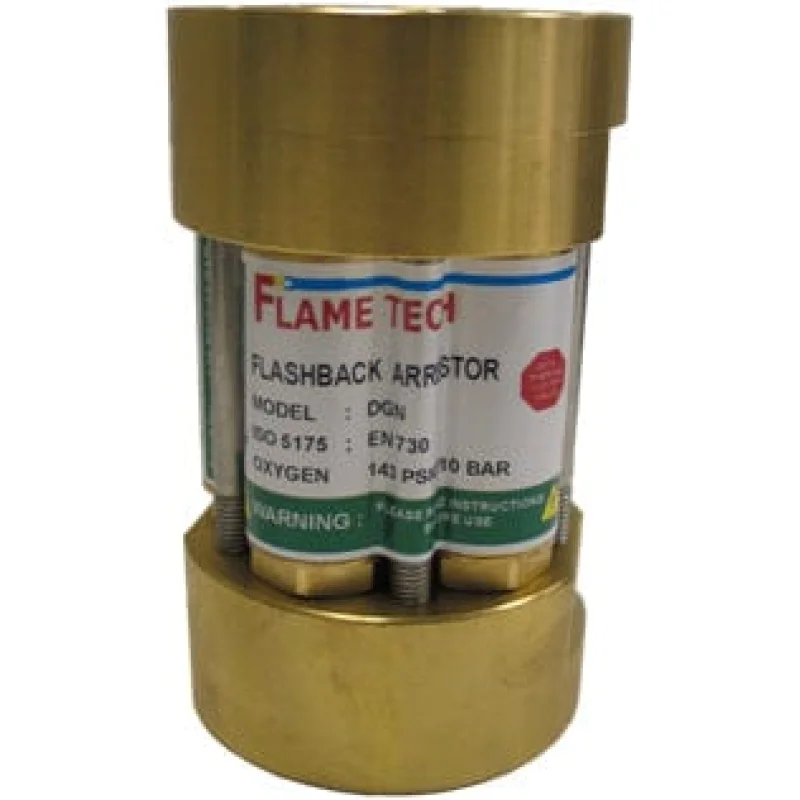

Demax Series Inline and Point of Suppy Flashback Arrestor
The DEMAX Flame Tech Flash Arrestors are ideal for high volume gas flow applications in pipelines, manifolds and regulators. The DEMAX includes an inlet filter, reverse flow check valve, flame barrier, and thermal cut off in one compact brass body.
PART NUMBERS
0901-7000 Fuel Gas, 1″ Female NPT Inlet/Outlet, DEMAX Style
0901-7001 Oxygen, 1″ Female NPT Inlet/Outlet, DEMAX Style
APPROVAL & SPECIFICATIONS
Meets ANSI Z49.1 1999
Safety Guide Lines, OSHA,
NFPA Guide Lines.
UL Listed 23Y5.
SAFETY ELEMENTS
One Inlet Filter Included
(100 micron)
Reverse Flow Check Valve
Flame Barrier
Thermal Cut Off
MATERIALS
BODY: Brass, Alloy 360
INTERNALS: Brass
FLAME BARRIER: Stainless
Steel
ELASTOMERS: Neoprene
(NPR)
