Description

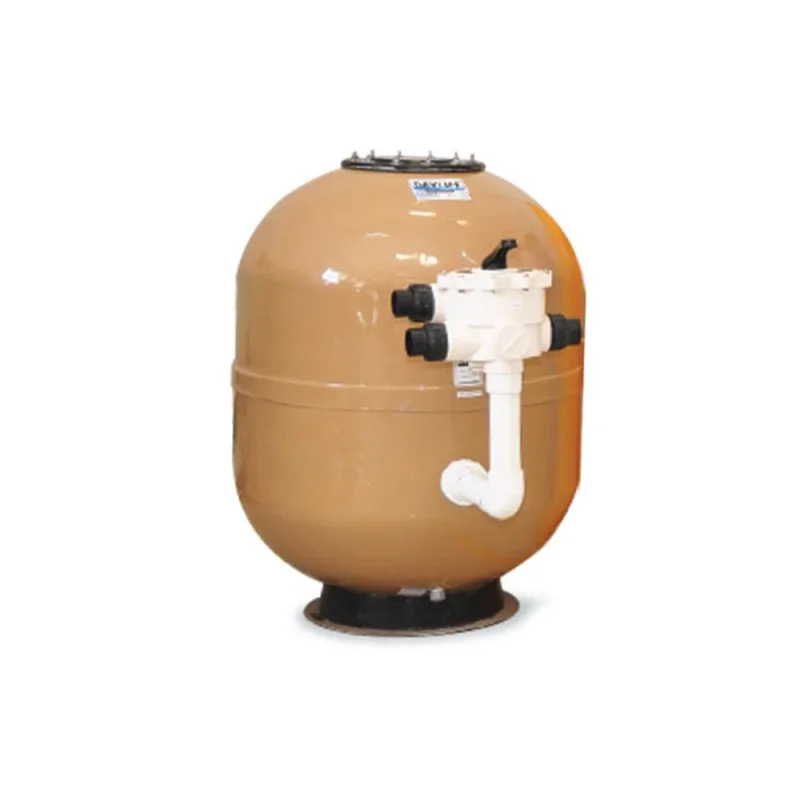

The DAYLIFF Superflo range of swimming pool filters are efficient and economical products suitable for domestic pool applications. Three models are available offering the following features:-
- Roto moulded corrosion proof polythelene plastic construction for long life.
- Simple to operate side mounted six position multi-port control valve.
- Screwed top cover for easy access to the filter media.
- Carefully designed internal collector piping giving superior flow performance.
- High grade Dayliff silicon sand media for exceptional filtration efficiency.
Dayliff Superflo filters are tried and tested over many thousands of installations and have proved to provide reliable and effective pool filtration. With a DAYLIFF Superflo filter sparkling clear water is assured at all times.
OPERATING PARAMETERS
| Model | Rated Flow (m/hr) | Pump Options | Pool Capacity (Litres) | Recommended Piping Size | Filter Area (m) | Dimensions (mm) | MPV Valve Size | Max Pressure (Bar) | Weights (kg) | |||||||
| Quality | kW | Light Use | Normal Use | Heavy Use | Suction | Delivery | H | D | Media | Nett | Gross* | |||||
| Superflo Q120 | 10 | QP3 | 0.6 | 100,000 | 80,000 | 60,000 | 1 | 1 | 0.24 | 560 | 560 | 1 | 1.1 | 120 | 13 | 155 |
| Superflo Q160 | 12 | QP4 | 0.75 | 120,000 | 96,000 | 72,000 | 2 | 1 | 0.3 | 720 | 630 | 1 | 1.2 | 160 | 19 | 229 |
| Superflo Q200 | 15 | QP6 | 1.1 | 150,000 | 120,000 | 90,000 | 2 | 2 | 0.39 | 710 | 710 | 1 | 1.2 | 200 | 22 | 296 |
