Description
Please contact for freight rates prior to purchase.

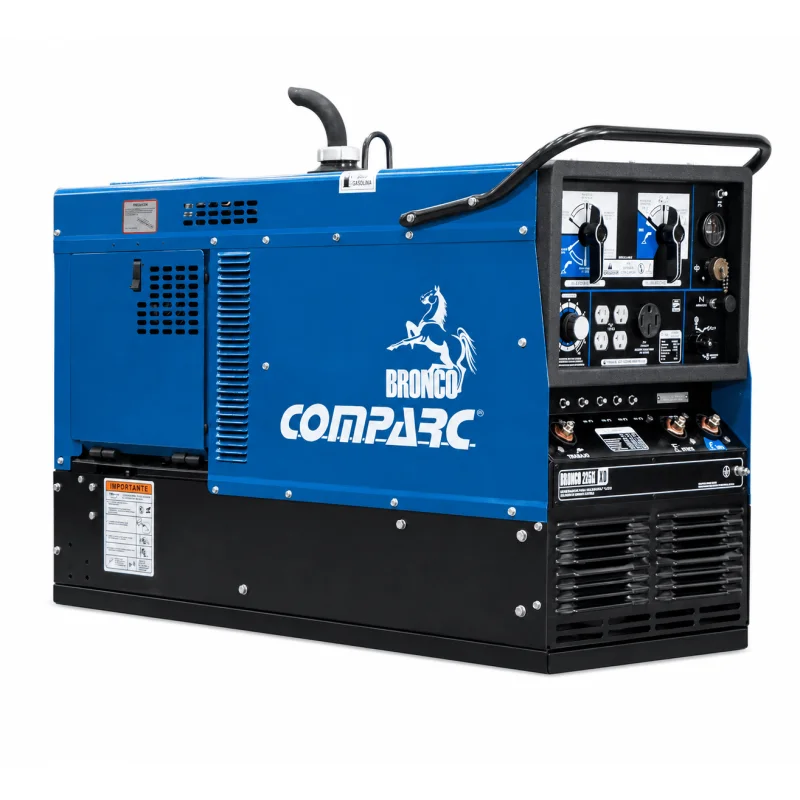

BRONCO 255 Engine Driven Welder – Kohler Command Pro Gas Powered
304-855
The BRONCO 255 is an industrial engine driven welder/generator designed for maintenance, repair, fabrication, and structural steel applications. Powered by a Kohler Command Pro CH750 gasoline engine, this unit delivers 250A welding output with AC/DC constant current and DC constant voltage capability.
Built for demanding field use, the BRONCO 255 features electric start, auto idle, fine-tuned current control, and a closed cabinet for added engine protection and reduced noise. With 120/240V single-phase auxiliary power, it can also support tools and equipment where shop power is not available.
Key Features:
- Industrial Welding Output: Delivers 250A output with AC/CC, DC/CC, and DC/CV welding capability.
- Kohler Command Pro Engine: Powered by a 24 HP Kohler CH750 gasoline engine operating at 3,600 rpm.
- Auxiliary Power: Provides 10 kW continuous and 11 kW peak auxiliary power for tools and jobsite equipment.
- Durable Enclosed Design: Closed cabinet helps protect the engine while reducing operating noise.
- Operator Convenience: Electric start, auto idle, fuel level indicator, hour meter, and top fuel access.
- Field Ready: Suitable for repair work, fabrication, structural steel, and maintenance applications.
Specifications:
Engine: Kohler Command Pro CH750, air-cooled, gasoline powered
- Engine Model: Kohler Command Pro CH750
- Horsepower: 24 HP @ 3,600 rpm
- Cylinders: Two
- Cooling System: Air-cooled
- Starter: Electric with 12V battery
- Fuel Type: Gasoline
- Fuel Consumption: 7.2 L/hour
- Fuel Tank Capacity: 40 L
Optional Accessories
- Voltage sensing wire feeder S 512 P
- Running gear and handle
|
Rated Output |
100% Duty Cycle 250A @ 25V, AC/CC |
|
Maximum Output |
60% Duty Cycle 250A @ 21V, AC/CC |
|
Part Number |
304-855 |
|
Current Range |
45-250A AC/CC |
|
Auxiliary Power |
11 kW peak |
|
Engine |
24 HP Kohler Command Pro CH750 @ 3,600 rpm |
|
Dimensions |
H. 43.30″ W. 27.75″ L. 44.0″ |
|
Weight |
Net: 593 lb |
