Description

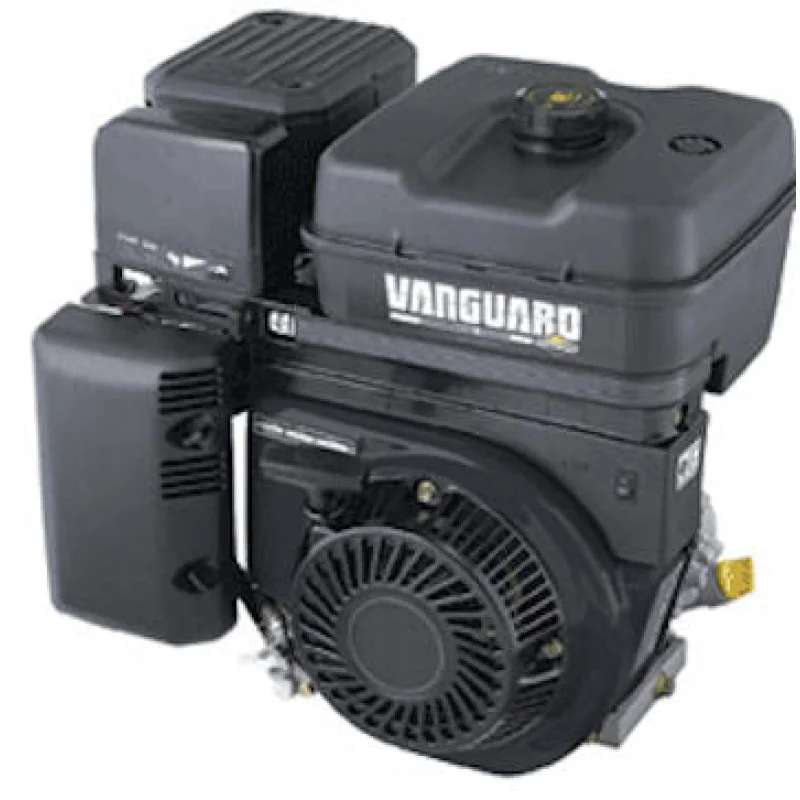

13hp Briggs Vanguard OHV
4-11/32″ long tapered shaft, tapped 5/16″.Dual ball bearings, cast iron sleeve, low oil shutdown.Made for generators, fixed constant speed.2 year warranty.Model 245432-0190.Not available for sale in California.80 lbs
Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| Top No Load Speed | SET ENG NO-LOAD SPEED TO 3150 +/-100 RPM |
| Gross Horsepower* | 13.00 |
| Oil Capacity | 50.8 fl. oz. |
| Air Cleaner | AIR CLEANER, DUAL ELEMENT PANEL |
| Air Cleaner Cover | AIR CLNR COV COL 290 – SATIN BLACK |
| Bearings | BEARINGS, FLANGE MOUNT BALL W/OIL SEAL & PILOT |
| Blower Housing | COVERS, AIR INLET-I |
| Bore Type | Sleevebore |
| Bore Size | 3.5 |
| Stroke | 2.48 |
| Crank / Crankcase | CRANKSHAFT NO 715343 |
| Casing Clamps | CASING CLAMP & SCREW, WITHOUT |
| Controls Groups | CONTROL GROUP 02, MODEL 23/24 |
| Cylinder Head | CYLINDER, ALUMINUM W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, IN CRANKCASE |
| Oil Drain | OIL FILL, DUAL |
| Misc | SHUT OFF VALVE, ON AIR CLEANER SIDE |
| Flywheel | FLYWHEEL, HEAVY NON-ELEC START & NON-ALT |
| Fuel System | FUEL TANK SYSTEM, MOLDED FUEL TANK W/O GAUGE |
| Governor | MECHANICAL GOVERNOR |
| Exhaust | MUFFLER, SUPER LO-TONE INSTALLED |
| Spark Plug | SPARK PLUG, RESISTOR |
| Starting System | STARTER, REWIND POSITION – 10:30 O’CLOCK |
Overhead Valve Design Cooler, cleaner and more efficient operation.
More HP output with less displacement, less carbon build-up. Longer valve life and improved fuel economy
Dura-Bore Cast Iron Cylinder Sleeve Withstands wear and abuse while providing improved oil control Dual Ball Bearing Easily replaceable, extended service life
Dual-Clean Air Cleaner Pleated paper filter with foam pre-cleaner ensures maximum protection for extended engine life
Mechanical Compression Release Smooth, easy starts and instant return to maximum power after starting Large Volume Muffler Up to 50% quieter than comparable models. Produces low noise levels for a quiet work environment
Oil Guard Low-Oil Shutdown System Significantly reduces the chance of engine damage due to insufficient lubrication
Magnetron Electronic Ignition Quick, dependable starts with no maintenance required Buyer Warranty Package 2-year limited warranty
Engine Warranty Two-year engine warranty for consumer or commercial use applications
Number of Cylinders 1Gross Power: (kW/HP) 9.7 @ 3600 / 13 @ 3600Peak Gross Torque: (Nm/ft-lbs) 25.9 @ 2400 / 19.1 @ 2400Bore: (mm/in) 89 / 3.5Stroke: (mm/in) 63 / 2.5Displacement: (cm/in) 391 / 23.9Fuel Tank Capacity: (l/qt) 7.9 / 8.3Oil Capacity: (l/oz) 1.5 / 50.8Dimensions: (LxWxH) / (mm/in) 420.5 x 464.5 x 46 616.6 x 18.3 x 18.4
