Description

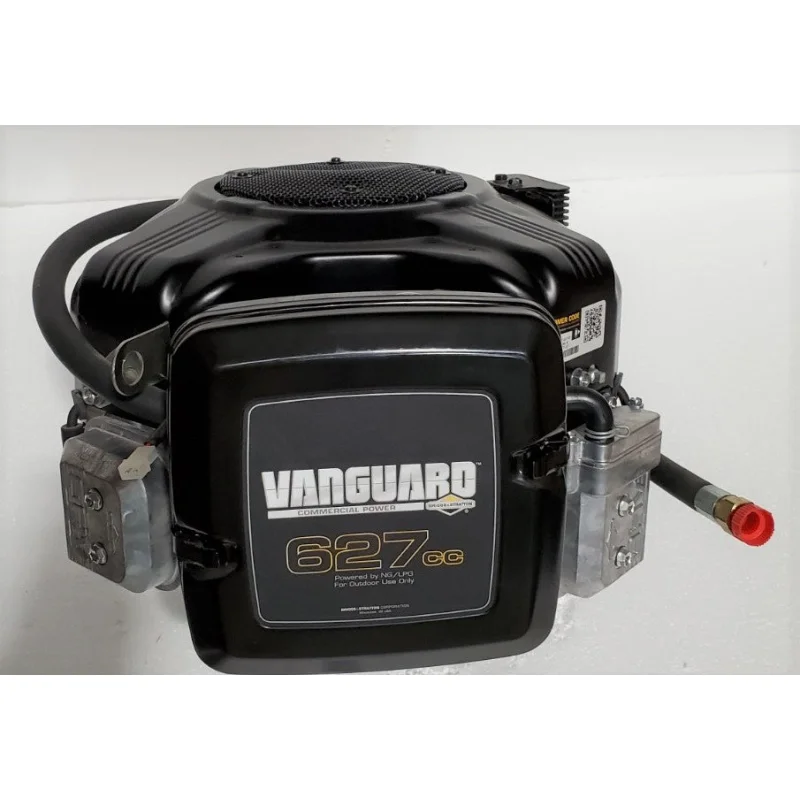

627ccBriggs Vanguard OHV Briggs and Stratton Standby Generator Replacement Engine
- LP/NG Setup
- Tapered Shaft
- No Keyway
- No Tank
- No Muffler
- 12 Volt Electric Start
- Cast Iron Sleeves
- Model 389575-0001
- 90 LBS
Model Number389575-0001-E1
Engine Specifications
| Engine Fuel | Gaseous |
| Configuration | Vertical |
| Cylinders | Two |
| SKU | 389575-0001-E1 |
| Air Cleaner | AIR CLEANER, PAPER ELEMENT (UL |
| Air Cleaner Cover | AIR CLNR COV COL 290 – SATIN B |
| Bearings | BEARINGS, STEEL BACKED ALUM MA |
| Blower Housing | NON-DUCTED AIR FLOW |
| Bore Type | Sleevebo |
| Bore Size | 2.970 |
| Stroke | 2.750 |
| Casing Clamps | CASING CLAMP & SCREW, WITHOUT |
| Cylinder Head | CYLINDER, TWIN W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, IN CRANKCAS |
| Oil Drain | OIL DRAIN, TRI-DRAI |
| Flywheel | FLYWHEEL, HVY EQUIP FOR ELE ST & NON-ALT |
| Fuel System | FUEL SYSTEM, WITHOUT FUE |
| Exhaust | MUFFLER, WITHOUT |
| Spark Plug | SPARK PLUG, RESISTOR |
| Starting System | STARTER, 12 VOLT INDUSTRIAL |
Technical Specifications
| Model Series | 3895 |
| Displacement | 627 |
| Oil Capacity | 48 oz (1.4 l) |
| Valve Configuration | OHV |
| Flywheel Torque | 125 lb/ft (169.5 Nm) |
| Governor Arm Torque | 115 lb/in (13.0 Nm) |
| Carb Mount | 65 lb/in (7.5 Nm) |
| Plug Gap | 0.03 in (0.75 mm) |
| Intake Valve | .004-.006 in (.10-.15 mm) |
| Exhaust Valve | .004-.006 in (.10-.15 mm) |
| Idle Speed | 1750 |
| Air Gap | .008-.012 in (.20-.30 mm) |
| Flywheel Puller Part | 19203 |
| Flywheel Holder Part | 19433 |
| Connecting Rod Torque | 115 lb/in (13.0 Nm) |
| Sump Torque | 150 lb/in (17.0 Nm) |
| Head Torque | 165 lb/in (18.5 Nm) |
Crankshaft Specifications
| Service Part Number | 846652 |
| PTO Type | Tapered |
| Woodruff Key(s) | – |
| Square PTO Key 1 | – |
| PTO Keyway 1 (mm) | – |
| Square PTO Key 2 | – |
| PTO Keyway 2 (mm) | – |
| PTO Threads | 0.313-24 UNF |
| PTO Shaft Diameter (in) | 1.193 |
| PTO Shaft Diameter (mm) | 30.3 |
| PTO Shaft Length (in) | 3.425 |
| PTO Shaft Length (mm) | 87 |
