Description

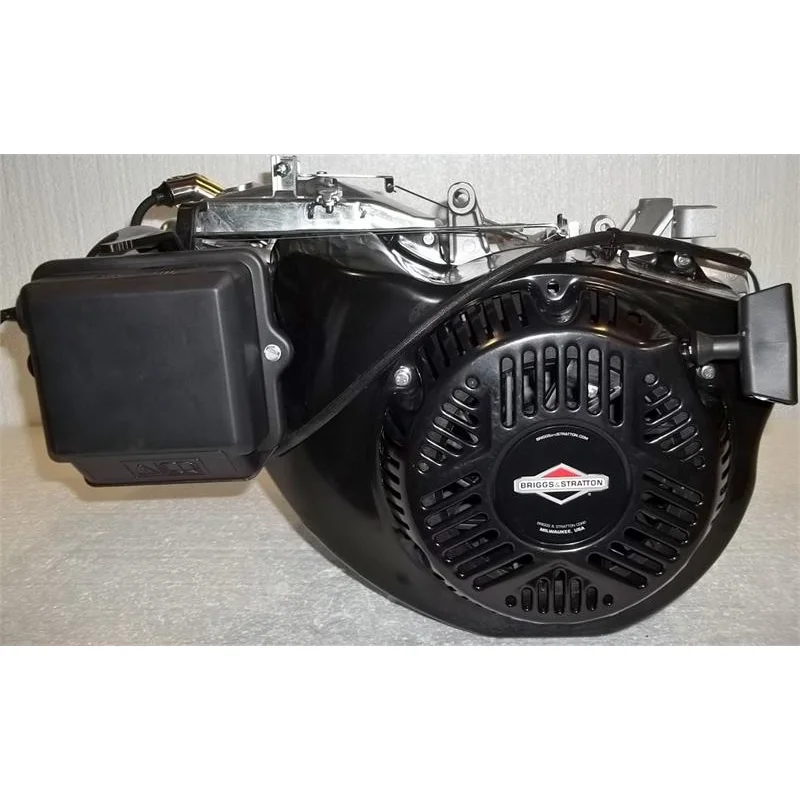

Briggs & Stratton 2100 Series
| MODEL NUMBER: | 25T235-0111 |
| POWER OUTPUT: | 21.00Torque Power |
| SHAFT MOUNTING: | HorizontalShaft |
| SHAFT SIZE: (D x L) | 4-11/32″ tapered shaft, tapped 5/16″ |
| STARTER TYPE: | ElectricStarter w/ recoil auxiliary |
| APPLICATION(S): | Generator replacement engine |
| WEIGHT: | 75lbs |
| REPLACES: | Generator replacement engine30470, 30471, Troy Bilt 7000 watt generator30477 |
| WARRANTY: | 2 Years Consumer /1 YearCommercialCovered Through Briggs & Stratton Service Network |
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| SKU | 25T235-0111-G1 |
| Top No Load Speed | SET ENG NO-LOAD SPEED TO 3750 +/-100 RPM |
| Oil Capacity | 37 fl. oz. |
| Air Cleaner | AIR CLEANER, WITH LOW VACUUM PORT ON COVER |
| Bearings | BEARINGS, DUAL BALL W/OIL SEAL |
| Bore Type | Sleevebore |
| Bore Size | 3.54 |
| Stroke | 2.6 |
| Crank / Crankcase | CRANKSHAFT NO 816804 – JIS TAPER, M10 X 1.25 TAP |
| Casing Clamps | CASING CLAMP & SCREW INSTALLED |
| Controls Groups | SUPPRESS AFTERFIRE ENGINE |
| Cylinder Head | CYLINDER, ALUMINUM W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, LOW MOUNT, OPP CARB SIDE |
| Oil Drain | OIL FILL, OPPOSITE CARB SIDE |
| Flywheel | FLYWHEEL, HVY EQUIP FOR ELE ST & NON-ALT |
| Fuel System | FUEL SYSTEM, WITHOUT FUEL TANK |
| Governor | MECHANICAL GOVERNOR |
| Exhaust | MUFFLER, WITHOUT |
| Spark Plug | SPARK PLUG, NON-RESISTOR |
| Starting System | STARTER, REWIND POSITION – 2:00 O’CLOCK |
