Description

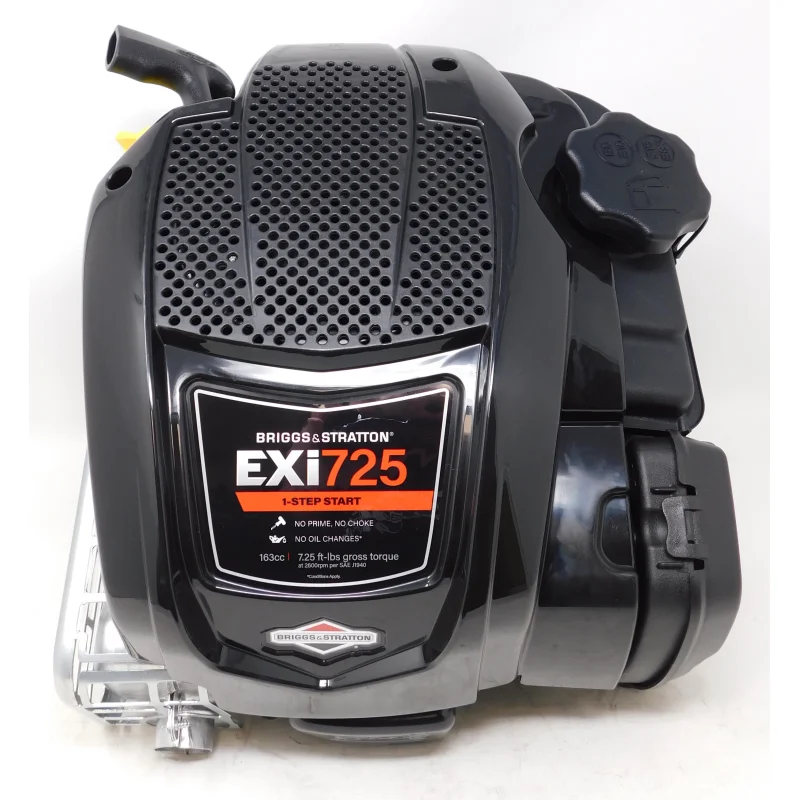

725 EXi Series
7.25 GROSS TORQUE
Briggs 7.25 TP 163cc
7/8″x 3-5/32″ shaft, tapped 3/8″-24 with 3/16″ keyway.Non-compliance engine, heavy flywheel.Fixed Speed, Ready Start
Universal replacement engine for pressure washers, log splitters,and other typesof engines that do not need a flywheel brake, or that have a mower blade attached.3600 rpm top speed setting.Model 104M02-027028 lbsModel Number104M02-0270-F1
Engine Specifications
| SKU | 104M02-0270-F1 |
| Model/Type/Trim | 104M02-0270-F1 |
| Air Cleaner | Dual Element |
| Carburetor | ReadyStart – Simple System |
| Casing Clamp | Without |
| Controls | Fixed Speed |
| Crankshaft | Straight 7/8″ Dia – 3.156″ PTO |
| Crankshaft Details | 3/16″ Keyway, 3/8-24 UNF-2B |
| Emissions Certification | EVAP/EXH/EU |
| Engine Base | Standard (Non Flange Mount) |
| Engine Package | High Debris |
| Engine Sold In | United States & Canada |
| Engine Speed | 3600 +/- 0100 RPM – No Load |
| Flywheel | Heavy – Cast Iron |
| Fuel Cap | Black 1/4 Turn |
| Fuel Shutoff | Without |
| Fuel Tank | EVAP – 1.0L |
| Label Power | EXi725 Series |
| Muffler Guard | Stamped |
| Oil Dipstick | Extended – Black Cap |
| Oil Drain | Without, Check & Add |
| Rewind Position | 5:30 |
