Description

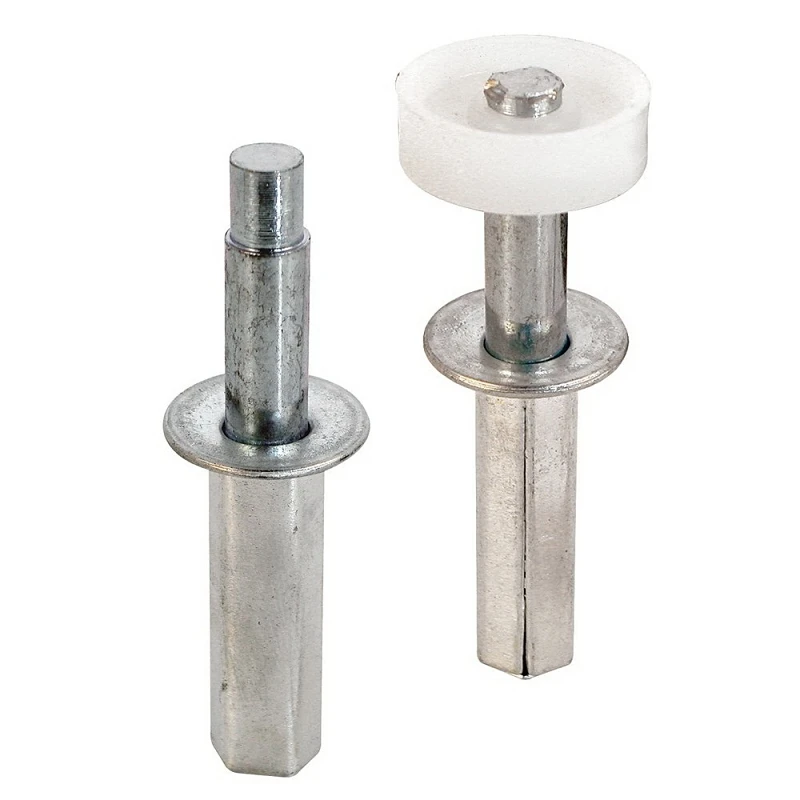

This is a combination set of the top pivot and top guide typically used on a variety of wood bi-fold doors. They are both spring-loaded steel shafts set a in 7/16 in. diameter steel housing. The pivot fits a 7/16 in. diameter bore, and the pivot stem measures 1/4 in. The top guide wheel fits on 7/8 in. wide track systems. The 7/8 in. horizontal roller on the guide provides a smooth guiding of the lead door. The top pivot has a 1/4 in. diameter pin set in its steel housing. To install, lightly tap them into the pre-drilled top mount holes. Used by a variety of bi-fold door manufacturers.
- Used on bi-fold doors
- Top mount design
- Self-adjusting
- Steel housing and nylon roller
- Has a 7/16 in. outer diameter housings
- Has a 1/4 in. pivot tip
- A soft mallet may be required for installation
- For further dimensional information, please see the line drawing
| SKU | 107447 | UPC | 049793872630 |
| Weight | 0.16 lbs | Package Width | 3.75 in |
| Package Length | 1 in | Package Height | 5.4 in |
| Model Number | N 7263 | Brand | Prime Line |
| Manufacturer Name | PRIME LINE PRODUCTS |
