Description

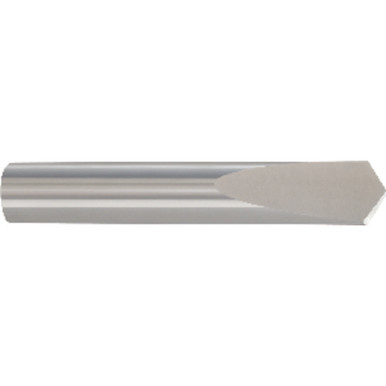

Solid Carbide Spade DrillRecommended for thin sheet applications, shallow hole drilling and spot drilling in a wide range of materials Solid Carbideoffers excellent hardness, wear resistance and heat resistance for higher cutting speeds and longer tool lifeHigh rigidity enhances hole accuracy and quality118? Point – Heavy Duty WebTolerance +0/-.0005Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING:This product contains a chemical known to the State of California to cause cancer or Birth defects.For more information go towww.P65Warnings.ca.govDrill Bit Size / Cutting Diameter (DC) 7/64″Tool Type DrillDrill Bit Size / Cutting Diameter (DC) – Inch 7/64″Point Shape Heavy Duty WebDecimal Equivalent 0.1094″Measurement Type InchLength Group Spade DrillSeries/List 5377Coating BrightUsable Length (LU) 7/16″Connection Diameter Machine Side (DCONMS) 7/64″Length Chip Flute (LCF) 7/16″Coolant Supply Property (CSP) ExternalOverall Length (OAL) u200e1-1/2″Point Angle (SIG) 118 DegreesFlute Count (NOF) 1Flute Helix Angle (FHA) 0 DegreesCutting Direction (HAND) Right HandShank Type RoundBody Material CarbideCutting Edge Material Carbide
