Description

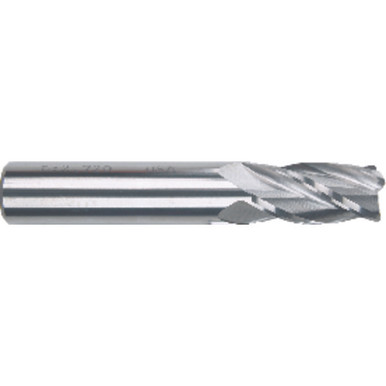

Solid Carbide 4-Flute Single End Mills
 TiALN Coated Regular LengthCountry of OriginUSACutting Diameter (DC) 5/8″Usable Length (LU) u200e1-1/4″Connection Diameter Machine Side (DCONMS) 5/8″Application FinishingDepth of Cut Maximum (APMX) u200e1-1/4″Tool Type Single EndOverall Length (OAL) u200e3-1/2″Length Group RegularCutting Edge Material CarbideCoolant Supply Property (CSP) ExternalCoating AlTiNStyle FinishingFlute Count (NOF) 4Decimal Equivalent 0.625″Flute Helix Angle (FHA) 30 DegreesMeasurement Type InchShank Type PlainSeries/List 5943TEnd Shape Square
