Description

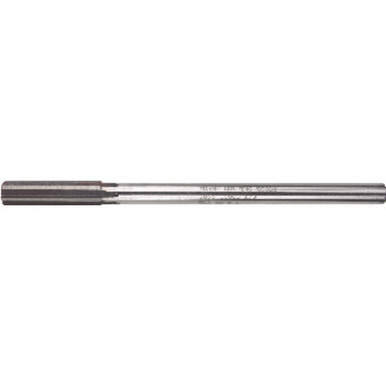

Straight Shank Chucking Reamer45 Degree chamfer for reaming most materialsDiameter Tolerance:Up to .5000 — +.0002/-0.5005 to .6250 — +.0003/-0.6255 to 1.5000 — +.0001/+.0004Country of OriginUSACutting Diameter (DC) 5/8″Cutting Edge Material HSSUsable Length (LU) u200e2-1/4″Shank Type RoundConnection Diameter Machine Side (DCONMS) 0.5615″Flute Type StraightFlute Count (NOF) 8Length Chip Flute (LCF) u200e2-1/4″Overall Length (OAL) 9″Measurement Type InchCutting Direction (HAND) Right HandSeries/List 1655Flute Helix Angle (FHA) 0 DegreesDecimal Equivalent 0.6250″
