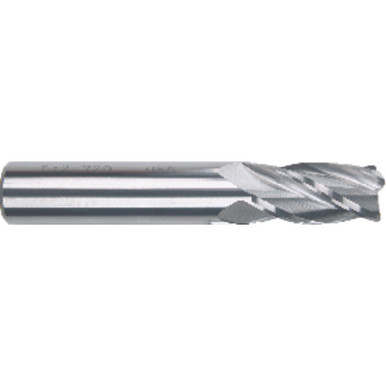

5/64″ x 1/8″ /16″ x 1 1/2″ 4 Flute Single End Carbide Finishing Center Cutting End Mill-Uncoated Series/List #5943 MT3257905

Description

Country of OriginUSACutting Diameter (DC) 5/64″Usable Length (LU) 3/16″Connection Diameter Machine Side (DCONMS) 1/8″Application FinishingDepth of Cut Maximum (APMX) 3/16″Tool Type Single EndOverall Length (OAL) u200e1-1/2″Length Group RegularCutting Edge Material CarbideCoolant Supply Property (CSP) ExternalCoating UncoatedStyle FinishingFlute Count (NOF) 4Decimal Equivalent 0.0781″Flute Helix Angle (FHA) 30 DegreesMeasurement Type InchShank Type PlainSeries/List 5943End Shape Square
