Description

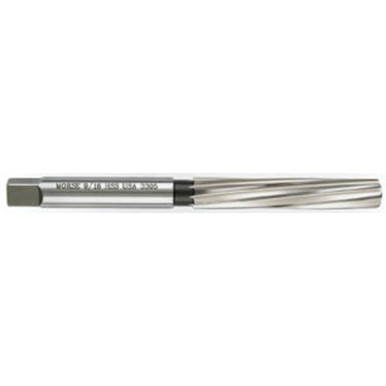

Hand Reamers Left Hand Helical Flutepushes chips out ahead of the reamer in through holes and bridges interruptions in the hole being reamed.Used for hand reaming for final sizing and finishing of holes.Ground with a starting taper for easy entry into the hole.Shankd are the same size the reamer size and are supplied with a square end for holding in a tap wrench or vise. Diameter TolerancesUp to 1/2 — +.0002/-0over 1/2 to 5/8 — +.0003/-0over 5/8 to 1-1/2 — +.0001/+.0004Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING:This product contains a chemical known to the State of California to cause cancer or Birth defects.For more information go towww.P65Warnings.ca.govCutting Diameter (DC) 5/16″Connection Diameter Machine Side (DCONMS) 5/16″Decimal Equivalent 0.3125″Shank Size (SS) 5/16″Length Chip Flute (LCF) u200e2-1/4″Shank Type Round w/ Drive SquareFlute Type LH SpiralCutting Edge Material HSSFlute Count (NOF) 6Coating BrightCutting Direction (HAND) Right HandMeasurement Type InchOverall Length (OAL) u200e4-1/2″Series/List 1602
