Description

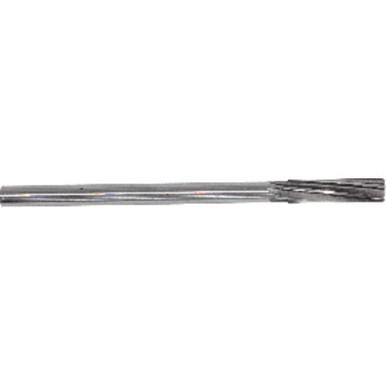

Straight Shank Right Hand Helix Chucking Reamer Right Hand Helixpulls chips out of the hole in blind hole and through hole applications, bridges interruptions and provides better finish and sizing than straight flute reamers.45 Degree chamfer for reaming most materialsDiameter Tolerance:Up to .5000 — +.0002/-0.5005 to .6250 — +.0003/-0.6255 to 1.5000 — +.0001/+.0004Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING:This product contains a chemical known to the State of California to cause cancer or Birth defects.For more information go towww.P65Warnings.ca.govCutting Diameter (DC) 31/32″Shank Type RoundUsable Length (LU) u200e2-5/8″Flute Type SpiralConnection Diameter Machine Side (DCONMS) 0.7490″Length Chip Flute (LCF) u200e2-5/8″Flute Count (NOF) 8Measurement Type InchOverall Length (OAL) 10″Series/List 1653Cutting Direction (HAND) Right HandDecimal Equivalent 0.9688″Cutting Edge Material HSS
