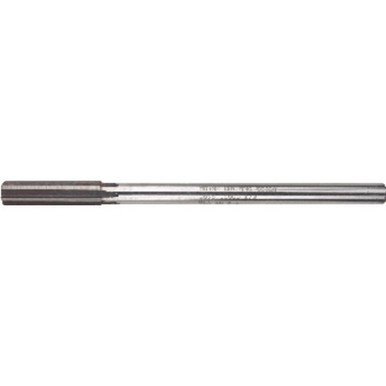

27/64″ Dia. 6-Flute, Round Shank, Straight Flute, HSS, 7″ OAL Chucking Reamer Series/List #1655 MT5022221

Description

Straight Shank Chucking Reamer†45 Degree chamfer for reaming most materialsDiameter Tolerance:Up to .5000 — +.0002/-0.5005 to .6250 — +.0003/-0.6255 to 1.5000 — +.0001/+.0004Country of OriginUSACutting Diameter (DC) 27/64″Cutting Edge Material HSSUsable Length (LU) u200e1-3/4″Shank Type RoundConnection Diameter Machine Side (DCONMS) 0.3730″Flute Type StraightFlute Count (NOF) 6Length Chip Flute (LCF) u200e1-3/4″Overall Length (OAL) 7″Measurement Type InchCutting Direction (HAND) Right HandSeries/List 1655Flute Helix Angle (FHA) 0 DegreesDecimal Equivalent 0.4219″
