Description

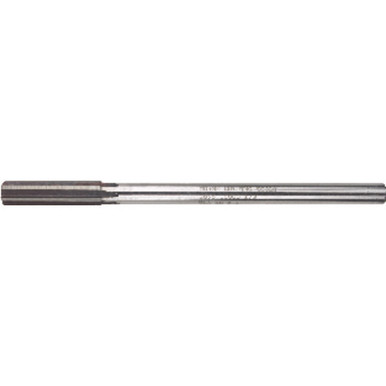

Straight Shank Chucking Reamer45 Degree chamfer for reaming most materialsDiameter Tolerance:Up to .5000 — +.0002/-0.5005 to .6250 — +.0003/-0.6255 to 1.5000 — +.0001/+.0004Country of OriginUSACutting Diameter (DC) 19/64″Cutting Edge Material HSSUsable Length (LU) u200e1-1/2″Shank Type RoundConnection Diameter Machine Side (DCONMS) 0.2792″Flute Type StraightFlute Count (NOF) 6Length Chip Flute (LCF) u200e1-1/2″Overall Length (OAL) 6″Measurement Type InchCutting Direction (HAND) Right HandSeries/List 1655Flute Helix Angle (FHA) 0 DegreesDecimal Equivalent 0.2969″
