Description

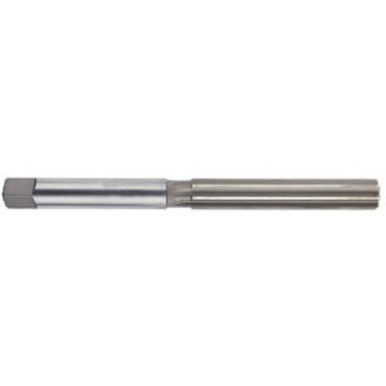

Hand ReamersUsed for hand reaming for final sizing and finishing of holes.Ground with a starting taper for easy entry into the hole.Shankd are the same size the reamer size and are supplied with a square end for holding in a tap wrench or vise. Diameter TolerancesUp to 1/2 — +.0002/-0over 1/2 to 5/8 — +.0003/-0over 5/8 to 1-1/2 — +.0001/+.0004Country of OriginUSACutting Diameter (DC) 1/4″Connection Diameter Machine Side (DCONMS) 1/4″Decimal Equivalent 0.25″Shank Size (SS) 1/4″Length Chip Flute (LCF) 2″Shank Type Round w/ Drive SquareFlute Type StraightCutting Edge Material HSSFlute Count (NOF) 6Coating BrightCutting Direction (HAND) Right HandMeasurement Type InchOverall Length (OAL) 4″Series/List 1601
