Description

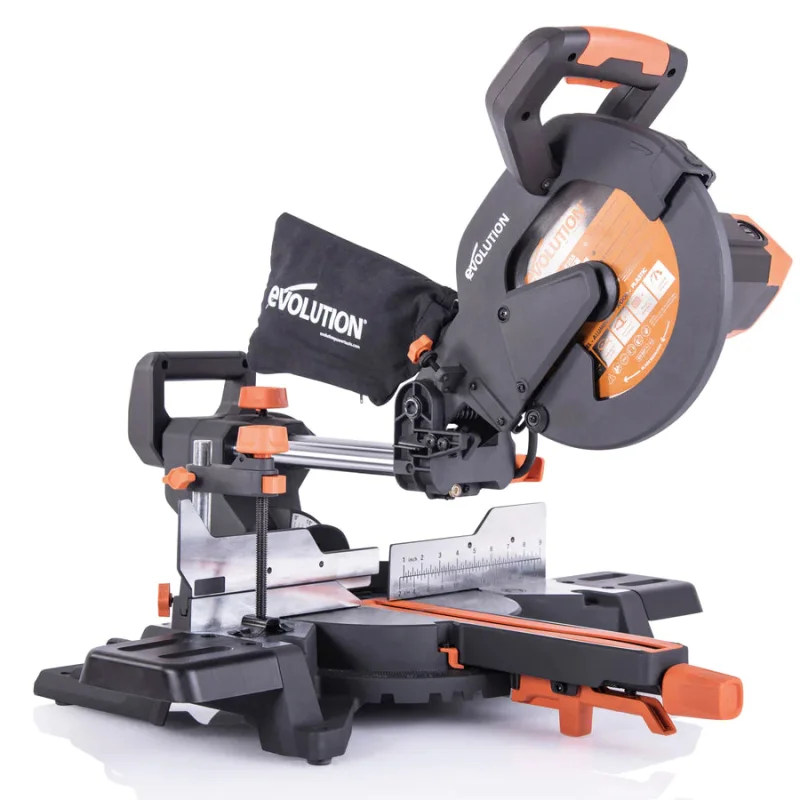

Evolution R255SMS+: Single Bevel Sliding Miter Saw With 10 in. Multi-Material Cutting Blade
SKU: R255SMS+
When purchasing additional blades please select 10in.
Overview
- Multi-Material cutting technology.
- 11-3/4 inch sliding functionality, adjustable depth of cut and laser guidance.
- Crosscuts, Miter cuts, Bevel cuts and Compound cuts with adjustable precision.
Description:
The Evolution R255SMS+ is everything you asked for in a miter saw and more. Capable of cutting 4-inch posts, cornices, skirting and hardwoods such as oak, walnut, maple and more. The speed and power of the hi-torque motor and the configuration of the Evolution blade tooth design allow you to cut through a variety of materials with ease. Including wood with embedded nails. Every detail of this design has been considered and refined to deliver accuracy, power, and reliability.
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with 11-3/4 inch sliding functionality, adjustable depth of cut and laser precision guidance.
- Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs, and virtually no sparks.
- Powerful 15A hi-torque, optimized gearbox, and blade system increase motor and blade life to cut through a variety of materials with ease.
- Perform accurate Crosscuts, Miter cuts, Bevel cuts and Compound cuts with adjustable precision settings.
- Cut to within +/- 0.5 with 0 – 45 bevel tilt and 50 – 50 miter angles with quick click miter stops at 0, 15, 22.5, 30, and 45 both left and right.
- An impressive 11-3/4 x 3-9/16 inch max. crosscut capacity enables you to cut 4 x 4-inch posts.
- Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combat repetitive strain.
- Compatible with Evolution’s Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.
- The Evolution 10 inch Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
- 3 Year limited warranty.
+PLUS Features
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 10-inch blade included for long-life, multi-material cutting.
- Quick-Release top clamp included for additional safety and faster adjustments.
- Tall neck and fences for increase cut capacity and versatility when cutting materials stood upright such as skirting and cornices.
- Laser-guided precision projects the cutting line on your workpiece for assisted straight-line cutting.
- Cleaner and safer working environment with a dust collection bag and dust port adaptor for use with vacuum extraction.
- Integrated carry handles – easy to carry and transport around the workplace.
- 13ft rubber power cable gives you the power and reaches you need to get the job done.
Cutting Capacities
| Max. Cross Cut (0 x 0): | 11-3/4 x 3-9/16 in. |
| Max. Bevel Cut (0 x 45): | 8-1/4 x 3-9/16 in. |
| Max. Miter Cut (45 x 0): | 11-3/4 x 2 in. |
| Max. Compound Cut (45 x 45): | 8-1/4 x 2 in. |
| Mild Steel Plate (Max. Thickness): | 1/4 in. |
| Mild Steel Box Section (Max. Wall Thickness): | 1/8 in. |
