Description

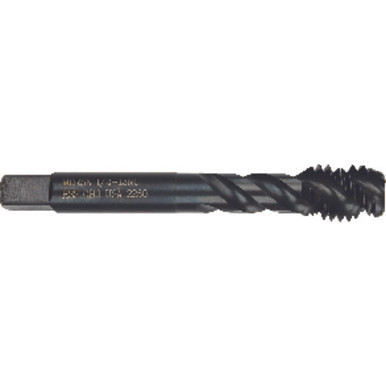

ShearTapô ShearTapôfor Stainless Steel & Carbon Steel up to 35Rc hardness. CNC Styleenchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece. Semi-Bottoming Styleare designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole. Steam Oxide over Nitrideincreases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention.Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING:This product contains a chemical known to the State of California to cause cancer or Birth defects.For more information go towww.P65Warnings.ca.govThread Diameter Size (TDZ) 1″Special Feature ShearTapThreads per Inch (TPI) 8Tool Type Production TapThread Standard NCChamfer Semi-BottomingOverall Length (OAL) u200e5-1/8″Coating Steam Oxide Over NitrideThread Cutting Part Length (THL) 1.025″Flute Type SpiralFlute Count (NOF) 4Style Semi-BottomingFlute Helix Angle (FHA) 48 DegreesMeasurement Type FractionalApplicable Material Steel | Stainless SteelToolTypeName Spiral Flute TapsCutting Edge Material HSSSeries/List 2091Thread Tolerance Class (TCTR) H4
