Description

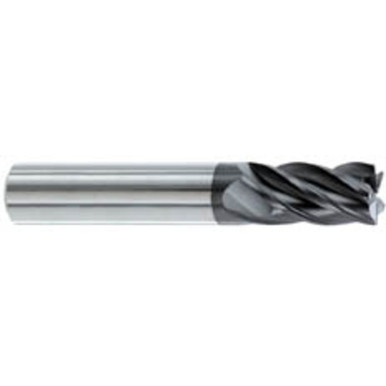

Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING:This product contains a chemical known to the State of California to cause cancer or Birth defects.For more information go towww.P65Warnings.ca.govCutting Diameter (DC) 1/4″Applicable Material Stainless Steel | Cast Iron | Super-Alloys / TitaniumConnection Diameter Machine Side (DCONMS) 1/4″Corner Radius (RE) u200e0.015″ – 0.020″Depth of Cut Maximum (APMX) 5/8″Tool Type Single EndOverall Length (OAL) u200e2-1/2″Length Group RegularCutting Edge Material CarbideCoolant Supply Property (CSP) ExternalCoating AlTiNStyle HPE Ultra-High Performance End MillsFlute Count (NOF) 5Decimal Equivalent 0.250″Flute Helix Angle (FHA) VariableMeasurement Type InchShank Type PlainSeries/List 5986End Shape Corner RadiusCorner Radius (RE) / Chamfer Width (CHW) u200e0.015″ – 0.020″Usable Length (LU) 5/8″
