Description

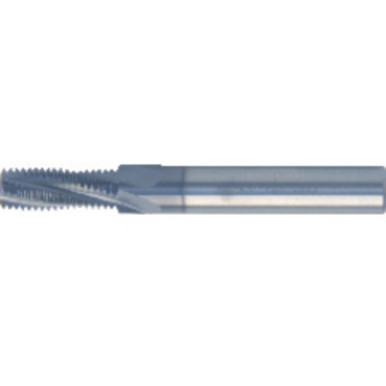

Solid Carbide Thread Mills Reduced Tool Inventory. One Thread Mill Can Produceinternal & external threads. left hand & right hand threads, different thread diameters of the same pitch and through hole & blind hole threads. Requires Less Power.Produce coarse pitches and large diameters on lower H.P. machines. Tough Threading Applications.Thread harder, difficult-to-machine & gummy materials that cause problems for taps. Helical Flutesfor reduced cutting forces, improved thread qualtiy & increased tool life. Precision Threading.Control pitch diameter precisely via programming. Precision thread depth control & positional accuracy. Produce 100% thread heights. Produce full threads to within one pitch of a shoulder or blind hole bottom. Easily Removed if Broken.No need for EDM burn-out. 10% Micrograin Carbideoffers higher cutting speeds, high rigidity, excellent hardness, wear resistance and heat resistance and long tool life. ALTiN – Alumimum Titanium Nitrideis an excellent all-around coating that is especially recommended for high thermal stress applications including dry machining, abrasive materials and difficult-to-machine materials. Benefits include higher cutting speeds and longer tool life.Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING:This product contains a chemical known to the State of California to cause cancer or Birth defects.For more information go towww.P65Warnings.ca.govThread Size 1″Coating AlTiNThreads per Inch (TPI) 12Application External Thread MillingThread Standard NFApplicable Material Steel |Stainless Steel |Cast Iron |Hard Materials |Hi Temp Alloys |Connection Diameter Machine Side (DCONMS) 3/4″Flute Helix Angle (FHA) 20 DegreesCutting Diameter (DC) 0.62″Cutting Edge Material CarbideOverall Length (OAL) 4″Usable Length (LU) u200e1-3/8″Flute Count (NOF) 5Series/List 5900Coolant Supply Property (CSP) External CoolantBody Material CarbideShank Type Round
