Description

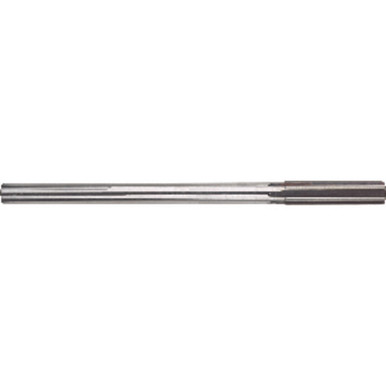

Straight Shank Chucking Reamer45 Degree chamfer for reaming most materialsDiameter Tolerance:Up to .5000 — +.0002/-0.5005 to .6250 — +.0003/-0.6255 to 1.5000 — +.0001/+.0004Country of OriginUSACutting Diameter (DC) 0.504″Cutting Edge Material HSSUsable Length (LU) 2″Shank Type RoundConnection Diameter Machine Side (DCONMS) 0.4355″Flute Type StraightFlute Count (NOF) 6Length Chip Flute (LCF) 2″Overall Length (OAL) 8″Measurement Type InchCutting Direction (HAND) Right HandSeries/List 1655HFlute Helix Angle (FHA) 0 DegreesDecimal Equivalent 0.5040″
