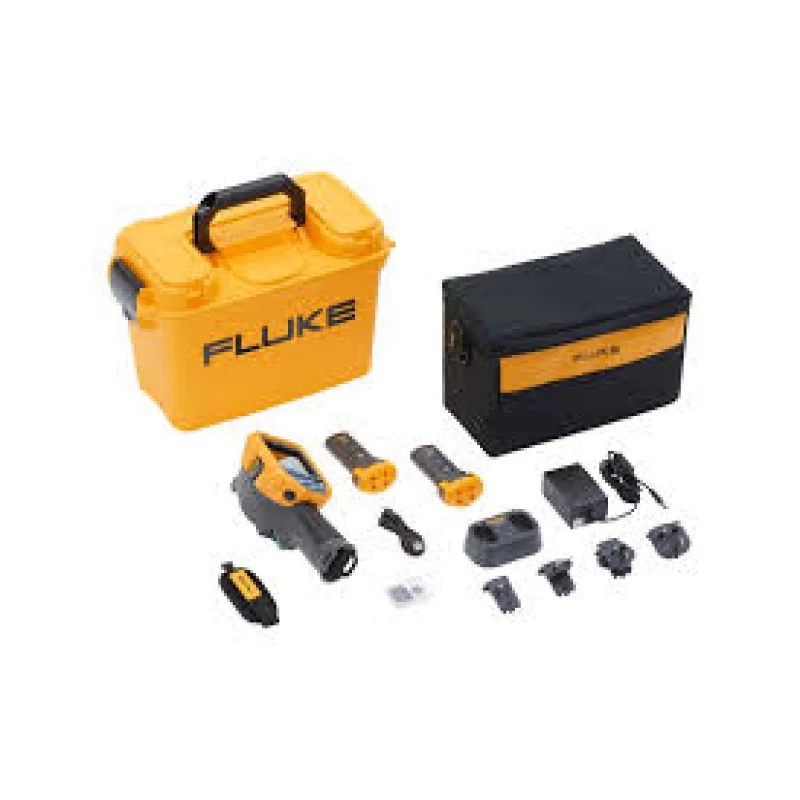

Fluke TiS60+ Key Specifications
Imaging & Optics
-
Infrared resolution: 320 240 pixels (76,800 total)
-
Spatial resolution (IFOV): 1.86 mRad, Distance-to-Spot ratio ~532:1
-
Field of view: 34.1 horizontal 25.6 vertical
-
Focus system: Fixed focus; minimum focus distance ~46 cm (18 in)
Thermal Performance
-
Temperature range: 20C to 400C (4F to 752F); not calibrated below 10C
-
Accuracy: 2C or 2% at nominal 25C (whichever is greater)
-
Thermal sensitivity (NETD): 0.045C at 30C target temp (45 mK)
Additional Imaging Features
-
Visible-light camera: 5 MP
-
IR-Fusion modes: AutoBlend (adjustable) and Picture-in-Picture
-
Image corrections: Emissivity adjustment, reflected background temperature compensation
Display & Usability
-
Screen: 3.5 LCD, 320 240 resolution
-
Operation: One-handed use with laser pointer
-
Frame rate: 30 Hz (or <9 Hz version available depending on region)
Memory & Storage
-
Internal storage: 4 GB
-
Expandable storage: microSD card included (4 GB)
-
Image formats: Fully radiometric (.IS2) and standard JPEG/BMP
-
On-device features: IR-PhotoNotes, voice annotations (up to 60 seconds), review, and interval capture
Connectivity & Software
-
Wireless: Wi-Fi and Ethernet (LAN)
-
Mobile compatibility: Works with iOS (iPhone 4s or newer) and Android 4.3+
-
Software support: Fluke Connect app and desktop software (depends on license)
Power & Battery
-
Batteries: Two rechargeable lithium-ion smart battery packs included
-
Battery life: Approx. 4 hours per pack (under typical use)
-
Charging options: 2-bay charger, in-camera charging, AC adapter, or 12 V vehicle adapter
Durability & Environmental
-
Drop resistance: Tested to 2 meters
-
Ingress protection: IP54 (dust protected and splash resistant)
-
Vibration/Shock resistance: 2G vibration, 25G shock tested
-
Operating temperature: 10C to +50C
-
Storage temperature: 20C to +60C
-
Relative humidity: 10% to 90% (non-condensing)
General
-
Spectral response: 7.5 to 14 m
-
Color palettes: 8 standard, 8 high-contrast options
-
Measurement tools: Center spot, hot/cold markers, user-defined box markers, color alarms
-
Size: 26.7 10.1 14.5 cm
-
Weight: Approx. 0.72 kg (1.6 lb)
